Description

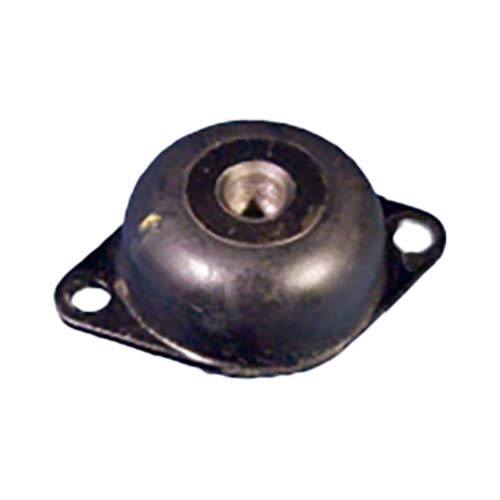

Mackay Flange Isolator M110

  • These special light duty isolators were developed to meet almost every type of machinery installation within the loading range, with telescopic metal inserts providing considerable stability in all directions.
  • The isolators can be fastened to the floor or other base.

Specifications

  • AIMS SKU A0166356
  • Brand Mackay
  • Model Number M11040
  • Barcode Number 9313699022651

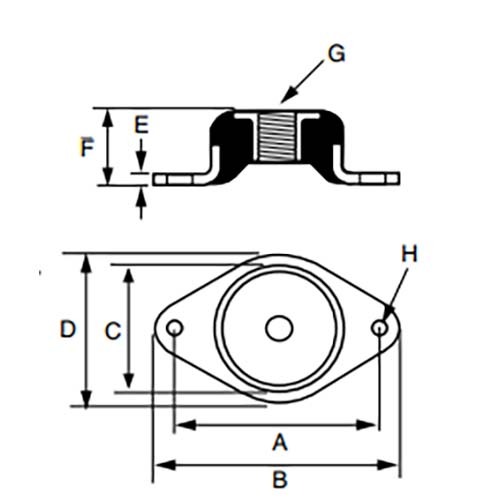

  • Thread Size 7/16 inch - 20 UNF
  • Weight (kg) 0.1
  • Hole Diameter 8.7 mm
  • Durometer 40
  • Width 48 mm
  • Length in (mm) 76
  • Height Size (mm) 22
  • Centre Hole Diameter 41 mm
  • Centre To Centre 60.3 mm
  • Plate Thickness (mm) 3
  • Compression Load 25 - 40 kg
  • Compression Deflection (mm) 2.3 - 3.7
  • Shear Load (kg) 20 - 35
  • Shear Deflection (mm) 2.2 - 3.8
SKU: A0166356 On Sale

Mackay M11040 Light Duty Flange Isolator 76 x 48 x 22mm - 25 to 40kg

Mackay Light Duty Flange Isolator

$28.93
$32.55
