Mackay Light Duty Flange Isolator M114

Description

***Dust/Oil Seal Shield M189 sold separately. Contact AIMS for assistance***

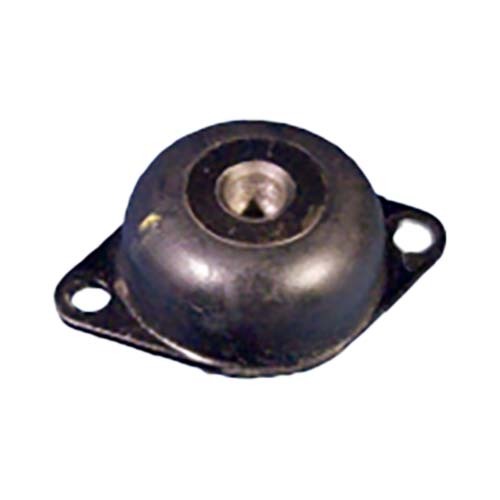

Mackay Flange Isolator M114

These special light duty isolators were developed to meet almost every type of machinery installation within the loading range, with telescopic metal inserts providing considerable stability in all directions.
Equipped with upper metal inserts, tapped to receive standard bolts or set screws.
The isolators can be fastened to the floor or other base.
Shield available (Part No. M189) to protect isolators from mechanical and chemical attacks. Sold separately, contact AIMS for assistance.

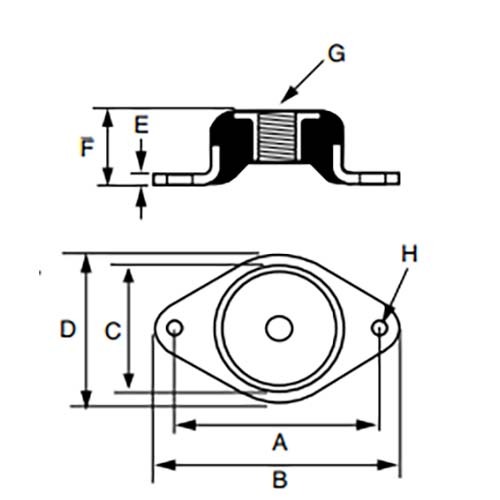

Specifications

AIMS SKU A0166359

Brand Mackay

Model Number M11440

Barcode Number 9313699018449

Thread Size 1/2 inch - 20 UNF

Weight (kg) 0.2

Hole Diameter 8.7 mm

Durometer 40

Width 60 mm

Length in (mm) 92

Height Size (mm) 29

Centre Hole Diameter 57 mm

Centre To Centre 76.1 mm

Plate Thickness (mm) 3

Compression Load 40 - 60 kg

Compression Deflection (mm) 2.4 - 3.6

Shear Load (kg) 25 - 40

Shear Deflection (mm) 2.3 - 3.7
