Mackay M1185 Instrument Isolator 2.3kg Load

Description

***Snubbing washers are not included.***

Mackay Instrument Isolator

Mackay range of instrument isolators is widely used to isolate steady static vibration and the control of occasional shock.
Easy to install
Configured to suit a variety of design requirements.
Generally recommended that snubbing washers be used to provide an interlocking system of metal parts that act to prevent damage from overload or excessive shock impact. Note: Snubbing washes are not supplied.

Applications:

Suitable for the isolation of noise transmission and similar high-frequency vibration.

Specifications

AIMS SKU A0166499

Brand Mackay

Model Number M1185

Barcode Number 9313699029483

Type Instrument Isolator

Weight (kg) 0.04

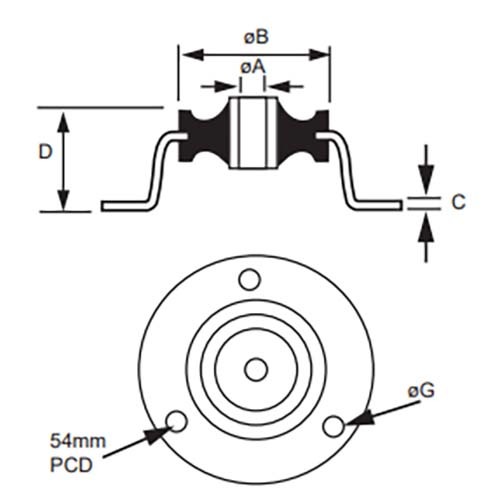

Hole Diameter 3.5 mm

Centre Hole Diameter 6 mm

Diameter (B) 40 mm

Plate Thickness (mm) 0.9

Compression Deflection (mm) 1.5

Compression load (kg) 2.3
