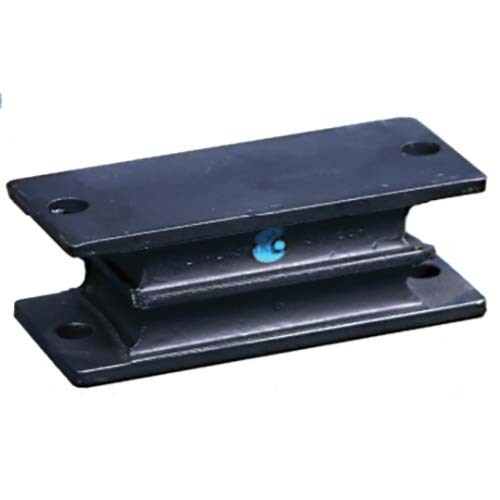

Mackay M3132250 Rectangular Plate Isolator Duro 50, 108 x 57 x 43mm

Description

Mackay Rectangular Plate Isolator

Where you require a plate Isolator of straightforward design to provide an uncomplicated solution to controlling vibration and shock, the range of Mackay Plate Isolators provides the answer.

These isolators are designed to protect equipment and machinery from damaging vibration and shock and have an excellent capacity for energy control.

Typical applications:

Printing presses
Road rollers
Vibratory feeders
Shipping containers
Crushers
Shaker units
Industrial machinery

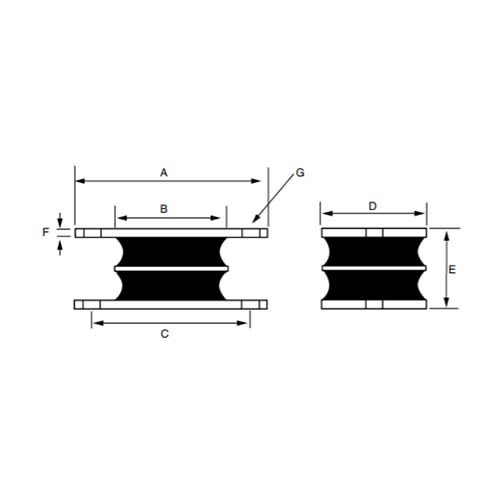

Specifications

AIMS SKU A0166909

Brand Mackay

Model Number M3132250

Barcode Number 9313699028745

Length (mm) 108

Weight (kg) 0.6

Hole Diameter 10.3 mm

Durometer 50

Width 57 mm

Height Size (mm) 43

Centre To Centre 89 mm

Plate Thickness (mm) 5

Compression Deflection (mm) 0.8 - 3.0

Shear Load (kg) 16 - 52

Shear Deflection (mm) 4.0 - 14

Compression load (kg) 50 - 195

Inside Length 63.5 mm
