Description

***Snubbing washers are not supplied.***

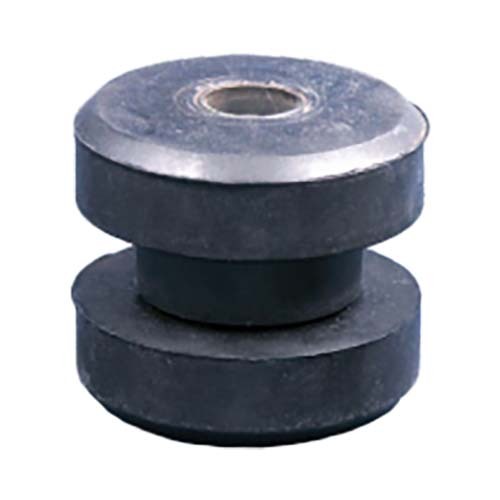

Mackay Mobile Two Piece Isolator

The Mobile Two Piece isolator is made of two parts of elastomer bonded to a central tube.

  • Interior reinforced : cylindrical tube
  • Elastomer: Neoprene with three different stiffnesses

Operation

The design of the Mobile Two Piece isolator gives the following basic characteristics.

  • Elastomer element resistant to oils.
  • Absorb vibrations and reduce noise in all directions.

Advantages

  • Good isolation against structual noises.
  • Neoprene resistance to oils, most solvents and ozone.
  • Simple and economical
  • Simple to fit
  • Four sizes for load capacity under axial loads from 18 - 953kg

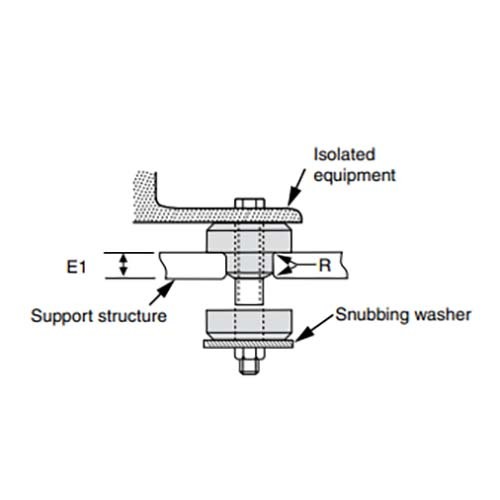

  • Anti-rebound effect when it is assembled with a washer

Applications

Mobile Two Piece isolator can be used in static or mobile applications , such as:

  • Pumps
  • Compressors
  • Generators
  • Electronic equipment
  • Engines
  • Transmissions
  • Plant cabs
  • Radiators

Note:Snubbing washers are not supplied

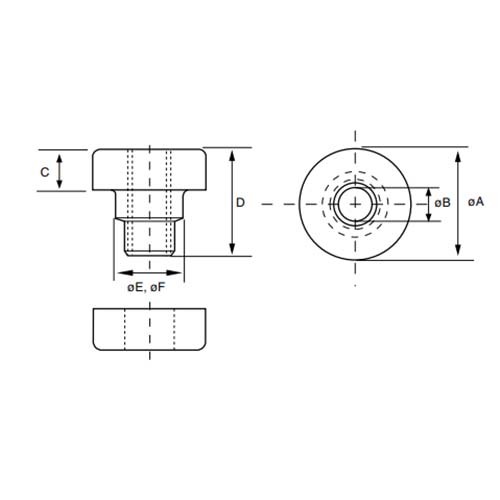

Specifications

  • AIMS SKU A0166431
  • Brand Mackay
  • Model Number M83090313
  • Barcode Number 9313699024150
  • Head Height (mm) 12.3
  • Weight (kg) 0.04
  • Bolt Size 9
  • Durometer 60
  • Head Diameter (mm) 33.2
  • Height Size (mm) 31.7
  • Centre Hole Diameter 10
  • Load (kg) 64
  • Deflection (mm) 1.3
  • Neoprene Colour White
  • Support Plate Height (mm) 9.5
  • Bolt Sae Grade 5
  • Bolt Max Torque (Nm) 40
  • Isolator Diameter (mm) 20.1
  • Mounting Hole Diameter (mm) 19
SKU: A0166431

Mackay Mobile Two Piece Isolator M83090313 - 64kg Load

Mackay Mobile Two Piece Isolator

$61.70
