Description

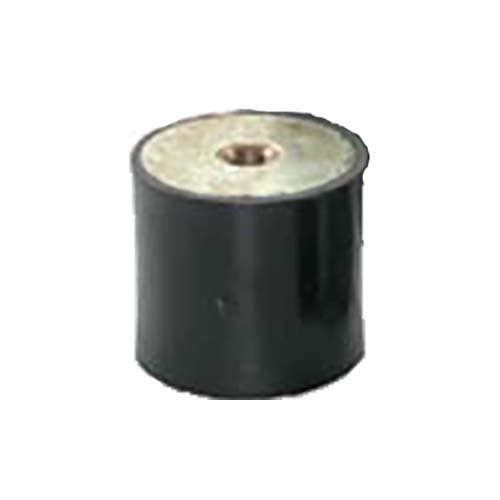

Mackay Multicushion Isolator Stainless Steel

  • Stainless Steel Multicushion isolators are manufactured in the most popular sizes from high-grade natural rubber and stainless steel (type 304) metal components.
  • Available in two rubber hardnesses (Duro), the cushions are supplied without fixing studs. Recommends fixing with appropriate stainless steel hexagonal socket set screws used with an appropriate locking compound.

Note! Multicushions are not recommended for use under permanent tension loading. Ensure load is applied to the full face and not just on the thread.

Specifications

  • AIMS SKU A0166289
  • Brand Mackay
  • Model Number M11202540
  • Barcode Number 9313699021920

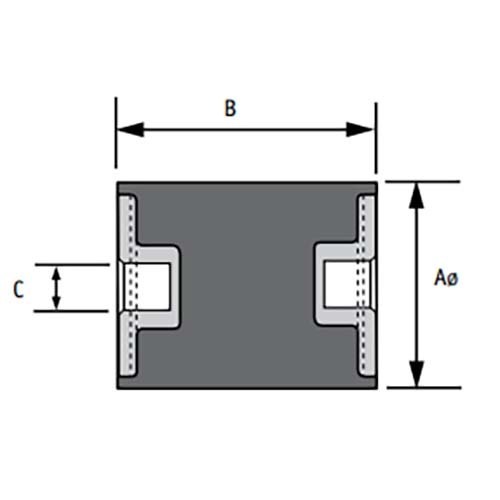

  • Diameter x Height (mm) 20 x 25
  • Thread Size M6
  • Weight (kg) 0.02
  • Duro 40
  • Compression Max Load (kg) 30.5
  • Compression Max Deflection (mm) 6
  • Shear Maximum Load (kg) 5
  • Shear Maximum Deflection 6
SKU: A0166289

Mackay M11202540 Multicushion Isolator Stainless Steel M6 - 20 x 25mm 40 Duro

Mackay Multicushion Isolator Stainless Steel

$38.31
