Mackay Pedestal Mount

Description

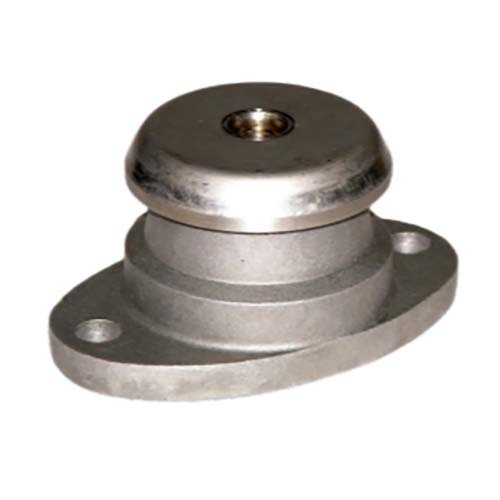

Mackay Pedestal Mount

Mackay pedestal mounting combines excellent isolation characteristics with convenient installation features, making it ideal for a wide variety of common installations.
Typically employed for mounting pumps, compressors, fans, and other machinery, in static and some mobile applications.
Design features include security against excessive overload and rebound movement, a protective stainless steel cover and an attractive lightweight cast aluminium base.
Integral overload and rebound washers.
Duro rating stamped on base.

Specifications

AIMS SKU A0166916

Brand Mackay

Model Number M70150

Barcode Number 9313699023696

Weight (kg) 0.4

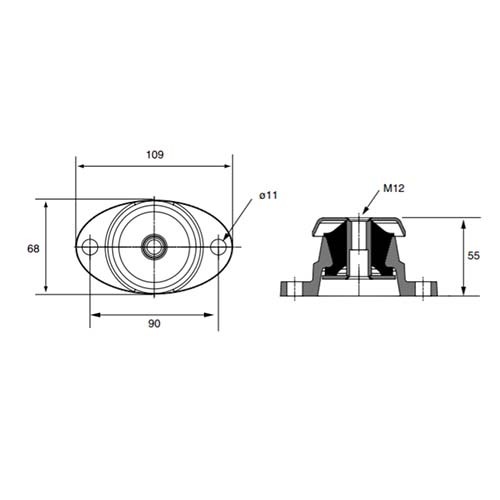

Hole Diameter 11 mm

Width 68 mm

Length in (mm) 109

Height Size (mm) 55

Center To Centre 90 mm

Normal Load (kg) 90

Deflection At Normal Load (mm) 6

Type Pedestal Isolator
Material Stainless Steel/Aluminium

Calculate Shipping

Resources

Mackay Industrial Rubber Technology Catalogue
