Specifications
- AIMS SKU A0166466
- Brand Mackay
- Model Number M8040645
- Barcode Number 9313699022859
- Thread Size 5/16” UNF
- Weight (kg) 0.2
- Hole Diameter 8.5
- Durometer 45
- Centre To Centre 74.5
- Compression Deflection (mm) 1.0 - 2.8
- Shear Load (kg) 14 - 43
- Shear Deflection (mm) 5.0 - 15.0
- Compression load (kg) 35 - 95 kg
- Length x Width x Height (mm) 94 x 41 x 36
- Colour Code Red
SKU: A0166466
On Sale

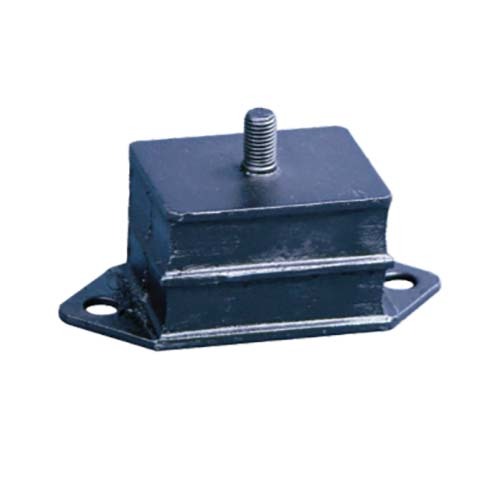

Mackay M8040645 Rectangular Plate Isolator 94 x 41 x 36mm - 35 to 95kg
Mackay Rectangular Plate Isolator
$117.59
Sale Ends in
