***Overload and rebound washers (M181550C) sold separately. Contact AIMS for assistance.***

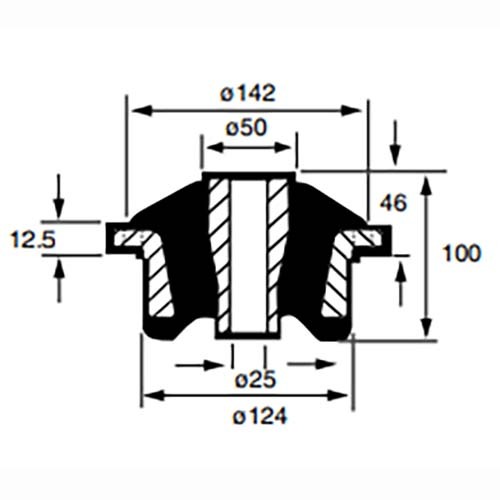

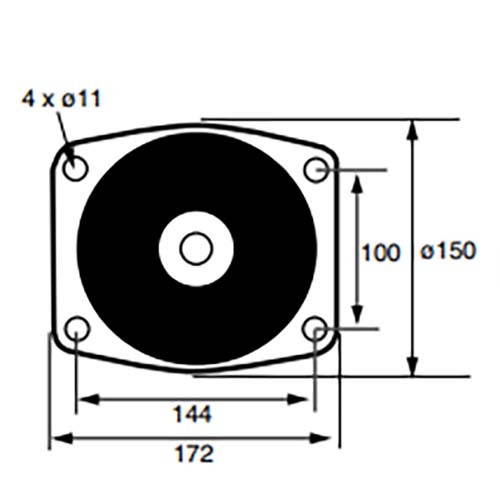

Mackay Recessed Flange Isolator 172 x 150 x 100mm

  • Designed for high load capacity combined with relatively large static deflections in an axial direction.
  • Their high loading for a given size is obtained by utilising the rubber to the best advantage in both compression and shear.
  • Normally assembled with overload and rebound washers to control and limit the movement of the suspended equipment under the action of shock loads.
  • Overload and rebound washers (M181550C) sold separately. Contact AIMS for assistance.

Duro and Colour Code Equivalent

  • 45 = Red
  • 50 = Yellow
  • 60 = White
  • 70 = Marked 70

Specifications

  • AIMS SKU A0167913
  • Brand Mackay
  • Model Number M80155045
  • Barcode Number 9313699023795
  • Weight (kg) 4.5
  • Hole Diameter 11
  • Length in (mm) 172
  • Height Size (mm) 100
  • Width B (mm) 150
  • Centre Hole Diameter 25
  • Duro 45
  • Compression Max Load (kg) 750
  • Plate Thickness (mm) 12.5
  • Deflection at Max Load (mm) 12.8
  • Number of Fixing Holes 4
  • Centre Bolt Size M24
  • Assembly Torque 260 Nm
  • Type Recessed Flange Isolator
SKU: A0167913 On Sale

Mackay M80155045 Recessed Flange Isolator 45 Duro 172 x 150 x 100mm Max Load 750kg

Mackay Recessed Flange Isolator

$1,325.11
$1,490.67
