Description

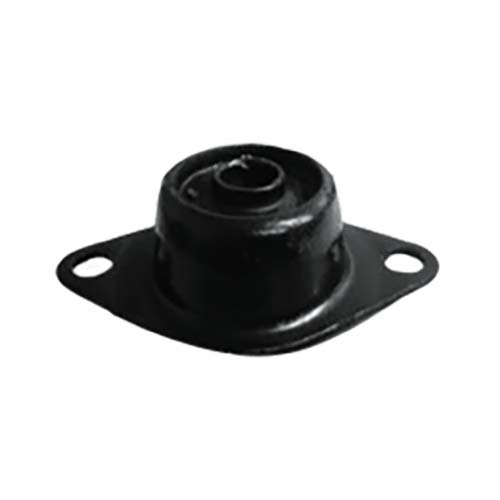

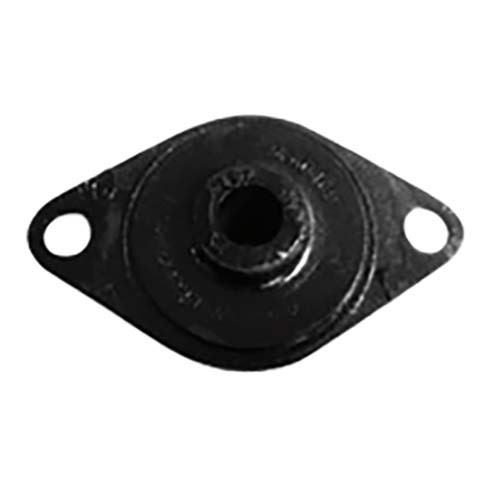

Mackay Recessed Flange Isolator Type 409

  • Designed for high load capacity combined with relatively large static deflections in an axial direction.
  • Their high loading for a given size is obtained by utilising the rubber to the best advantage in both compression and shear.
  • Suitable to control and limit the movement of the suspended equipment under the action of shock loads.
  • Durometer stamped into the flange.

Specifications

  • AIMS SKU A0167929
  • Brand Mackay
  • Model Number M8040935
  • Barcode Number 9313699023832
  • Weight (kg) 0.1

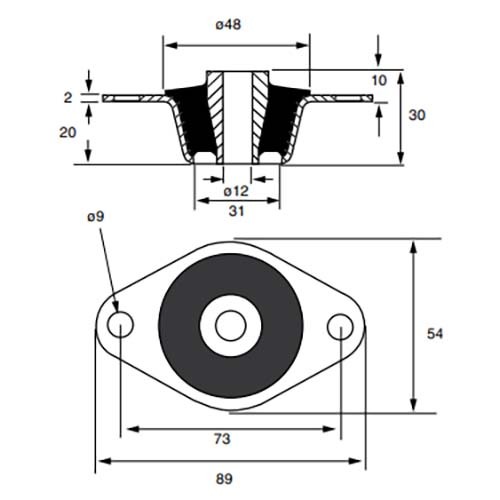

  • Hole Diameter 9 mm
  • Durometer 35
  • Width 54 mm
  • Length in (mm) 89
  • Height Size (mm) 30
  • Centre Hole Diameter 12 mm
  • Compression Max Load 24 kg
  • Diameter in (mm) 48
  • Plate Thickness (mm) 2
  • Centre Bolt Size M12
  • Assembly Torque 40 Nm
  • Type Recessed Flange Isolator
SKU: A0167929 On Sale

Mackay M8040935 Recessed Flange Isolator 35 Duro 89 x 54 x 30mm Max Load 24kg

Mackay Recessed Flange Isolator

$117.58
$132.28
