Mackay Recessed Flange Isolator Type 70

Description

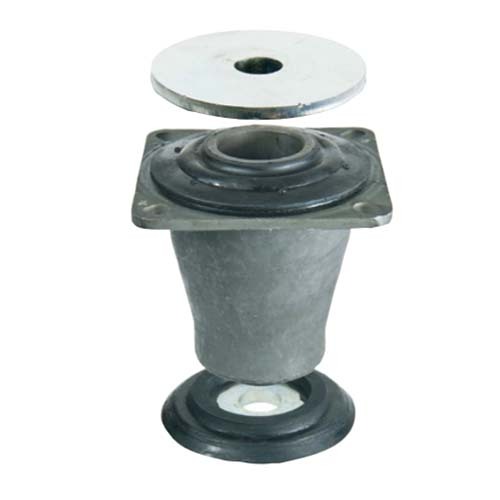

Mackay Recessed Flange Isolator Type 70

Designed for high load capacity combined with relatively large static deflections in an axial direction. Their high loading for a given size is obtained by utilising the rubber to the best advantage in both compression and shear.
Supplied with overload and rebound washers.
Normally assembled with overload and rebound washers to control and limit the movement of the suspended equipment under the action of shock loads. The central fixing bolts should be torque tightened to the recommended values.

Specifications

AIMS SKU A0166488

Brand Mackay

Model Number M137101

Barcode Number 9313699023764

Weight (kg) 3.45

Durometer 45

Width 95

Length in (mm) 123

Height Size (mm) 127.5

Centre Hole Diameter 24.5

Load (kg) 1000

Deflection (mm) 6
