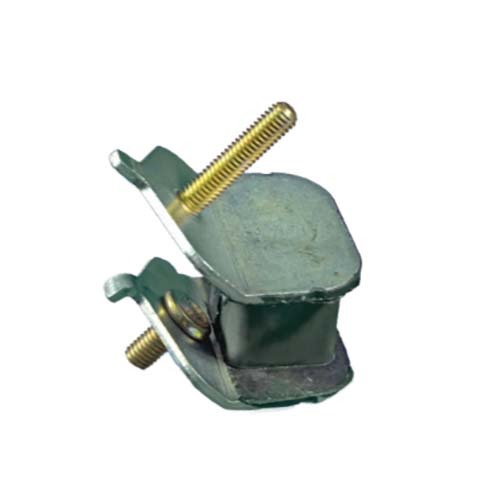

Mackay Single Shear V-Shaped Generator Isolator

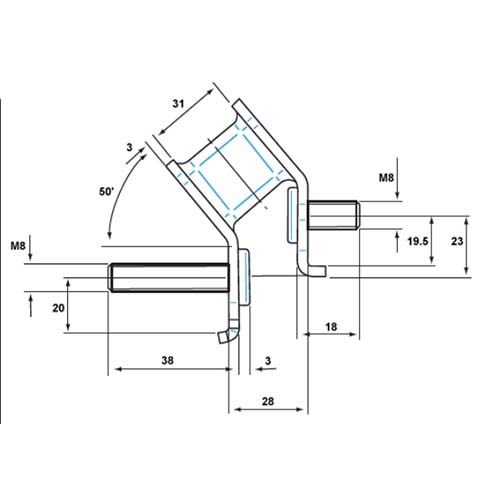

• Comprised of two symmetrically tilted metal parts with screws on each side.

Technical Characteristics

• The V-shaped generator mounts render it possible to make installations that are more elastic than the ones usually made with cylindrical or bobbing mounts. This makes it possible to achieve lower frequency and consequently better vibration isolation.
• Stability is enhanced when two are installed, symmetrically opposed.
• They have two different length screws which facilitate the assembly of the engine to the chassis. They have two “anti-turn” tabs that stop the mount from turning when strong tightening torque is applied (very frequently) with pneumatic tools.
• They are supplied in 2 hardnesses to adapt to different load ranges. They provide vibration attenuation of above 90% in diesel or petrol single-cylinder engines running at 3000 rpm.

Applications

• Portable generator sets, compressors and motor pumps.
• Very low-load engines require high levels of isolation.
