Mackay Stabiflex Isolator

Description

***Anti-rebound washer is not supplied.***

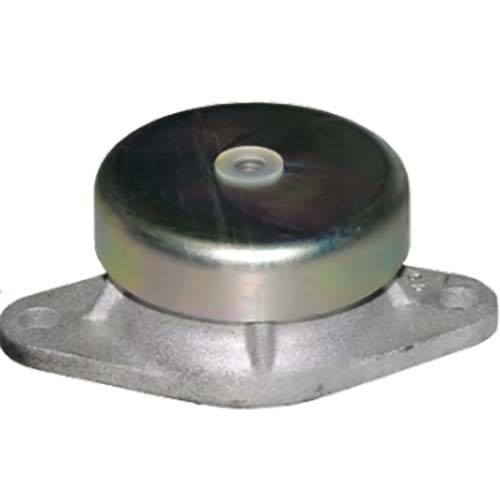

Mackay Stabiflex Isolator

The STABIFLEX flexible Isolator offers a metal protection shield for the rubber in applications where this is considered necessary.
Provide excellent isolation in both compression and shear loadings and are suitable in applications where isolation in the horizontal plane, as well as the vertical plane, is required.

Specifications

AIMS SKU A0166930

Brand Mackay

Model Number M53060360

Barcode Number 9313699023016

Weight (kg) 0.3

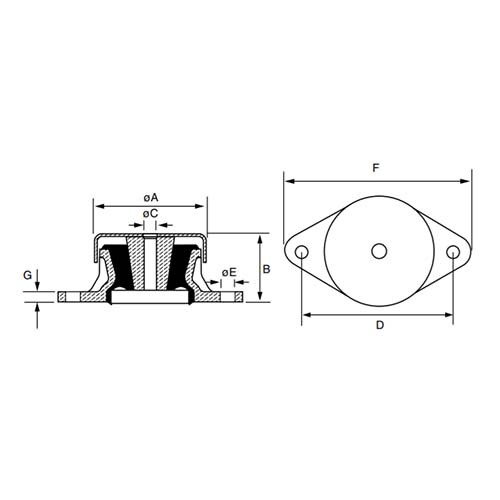

Hole Diameter 9

Durometer 60

Length in (mm) 114

Height Size (mm) 41

Centre Hole Diameter M12

Centre To Centre 98

Diameter in (mm) 69

Plate Thickness (mm) 6

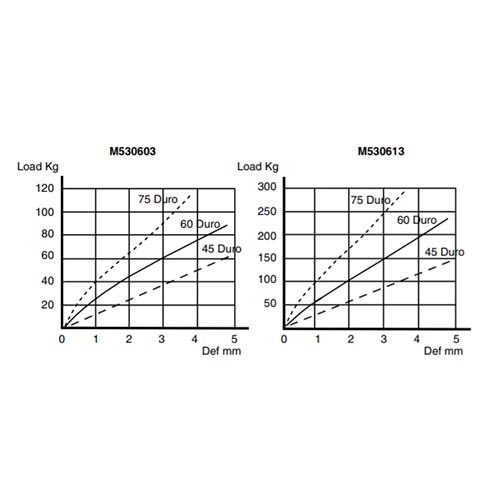

Load (kg) 60

Deflection (mm) 3

Type Stabiflex Isolator
