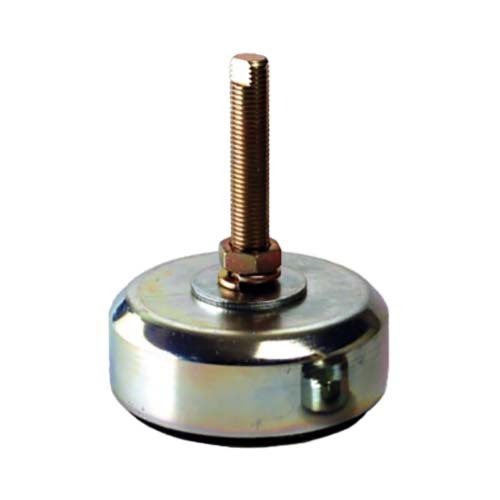

Mackay Surefoot Levelling Isolator Stainless Steel

Description

Mackay Surefoot Levelling Isolator Stainless Steel

Mackay Sure Foot Levelling Isolators are designed for cost-effective machine levelling.
Offer an effective and durable method for isolating free standing equipment and machinery on non-level surfaces.
Made using Nitrile rubber, Sure Foot offers superior chemical and oil resistance in comparison to natural rubber.
304 Stainless Steel

Specifications

AIMS SKU A0166928

Brand Mackay

Model Number M411200

Barcode Number 9313699024563

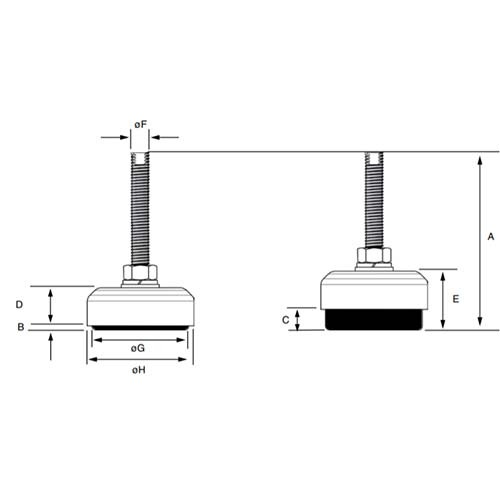

Thread Size M16 x 2.0 mm

Weight (kg) 1.1

Compression load (kg) 300 - 1200

Overall Height in (mm) 144

Exposed Base Min (mm) 8.8

Exposed Base Max (mm) 28

Adjustment Min (mm) 50.8

Adjustment Max (mm) 70

Base Diameter (mm) 91

Cap Diameter (mm) 101

Deflection At Exposed Base (mm) 1.5 - 5.9

Type Sure Foot Levelling Isolator
Material Nitrile Rubber/304 Stainless Steel
