Description

Mackay Torsion Isolator

  • Torsion isolators lend themselves to a wide variety of applications as they can be subjected to compression , torsion or shear.
  • Particularly use in all types of material handling equipment and because of the ease of fitment of the M512 series lend themselves to installation of connections and supporting links in shaker screens , conveyors etc.
  • The torsional stiffness of the M512 is particularly low and therefore reduces friction losses and power loss in vibrating drives and offers you a service free torsional bearing with equidirectional resilience

Specifications

  • AIMS SKU A0166941
  • Brand Mackay
  • Model Number M5123151055
  • Barcode Number 9313699025270
  • Weight (kg) 0.2

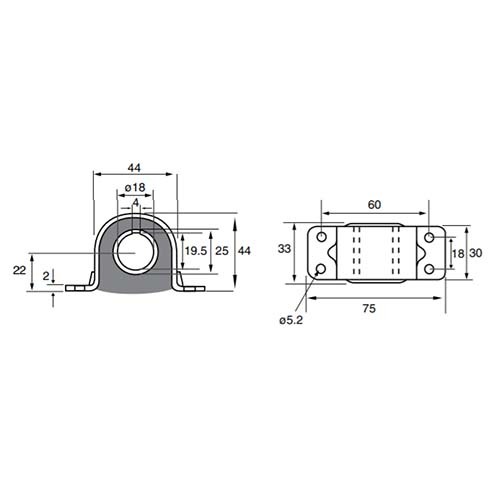

  • Outer Diameter (mm) 25
  • Hole Diameter 5.2
  • Durometer 55
  • Length in (mm) 75
  • Height Size (mm) 44
  • Centre Hole Diameter 18
  • Radial Load (kg) 110
  • Radial Deflection (mm) 0.7
  • Axial Load (kg) 120
  • Axial Deflection (mm) 4.5
  • Radial Torque Deflection Angle 4°
  • Radial Torque Load (kg) 1
  • Axiall Torque Deflection Angle 30°
  • Axial Torque Load (kg) 3.5
  • Plate Width (mm) 30
  • Type Torsion Isolator
SKU: A0166941 On Sale

Mackay M5123151055 Torsion Isolator 75 x 44mm Load 120kg

Mackay Torsion Isolator

$146.71
$165.04
