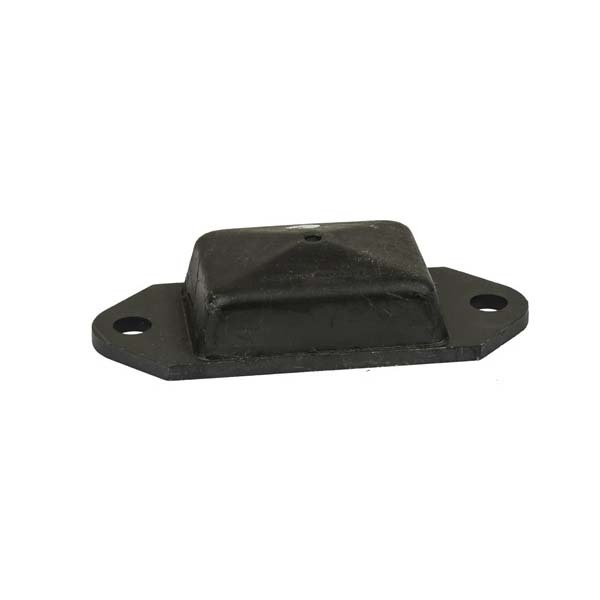

Mackay Bonded Rectangular Buffer

• This rectangular buffer is easily fitted.
• The reduction of transmitted shock loads enables equipment to be designed more economically.
• Designed to protect structures and equipment from impact forces. It is usually fitted as non-metallic stops or incorporated in vehicle suspension systems to provide progressive stiffing under increasing load.

Typical applications:

• Dump trucks
• Off-road vehicles
• Cranes
• Handling equipment
• Vehicle suspensions

Specifications

• Centre to Centre (mm):127
• Width (mm):64
• Length (mm):89
• Height (mm):37
• Overall Length (mm):156
• Centre Hole (mm):13.5
• Plate Thickness (mm):6.3
• Compression Load (kg):250
• Compression Deflection (mm):13
• Weight (kg):0.6
