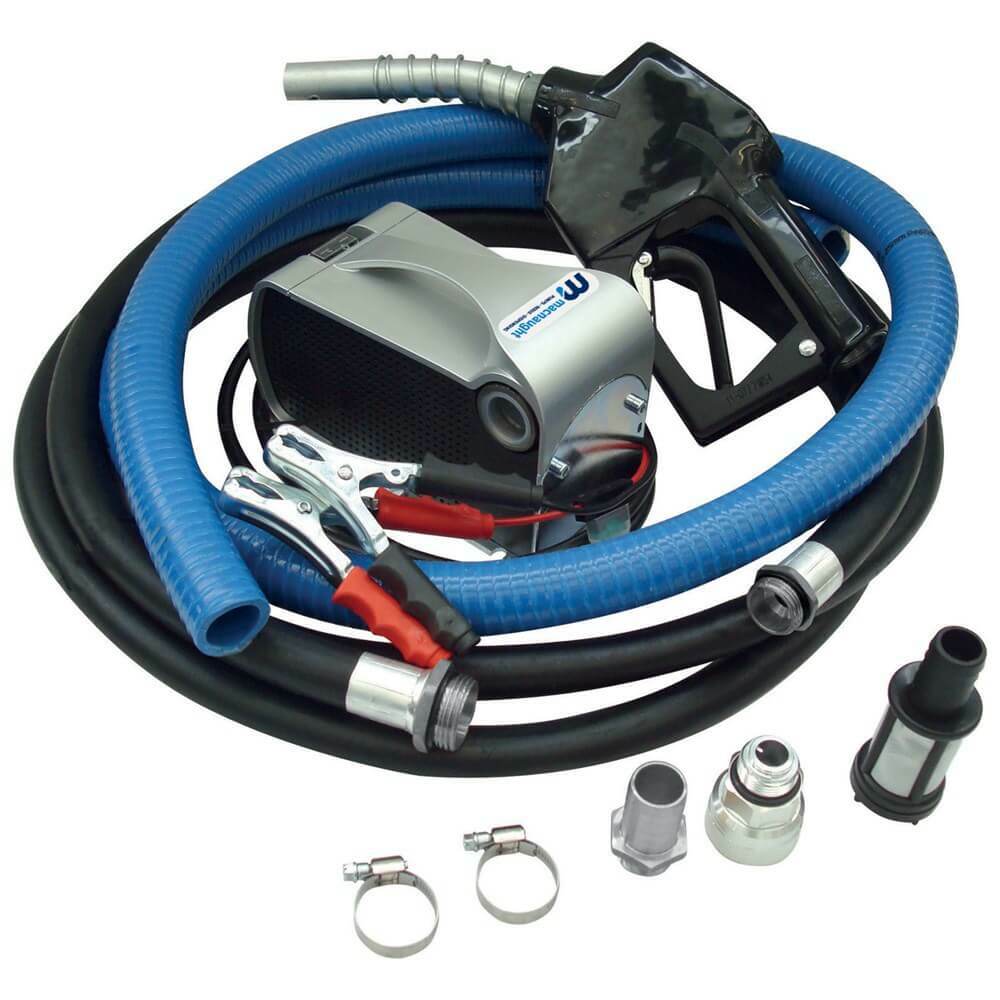

Ideal for portable diesel transfer applications including bulk tank, service truck or utility vehicle applications these 12/24V ELECTRIC DIESEL PUMP KITS are an economical alternative to manual pumps. These electric diesel pumps are self-priming vane pump with a built-in by-pass valve delivering a superior cool running pump that has a 30 minuteduty cycle. The pump delivers flow rates up to 40LPM (free flow). These pumps are supplied complete, everything needed for the operator to start transferring diesel.For the best control and accuracy, it is recommended to use the appropriate Macnaught digital diesel meter and filter.

Technical Specifications

• Flow rate up to 40LPM
• Suitable for diesel use only
• 12V or 24V options available
• 30min duty cycle
• Inlet and Outlet: 3/4"BSP (F)
• Remote mount design suitable for use with drums or bulk tanks
• Self-priming action for quiet, trouble-free operation
• 25mm x 2m suction hose
• 19mm x 4m delivery hose
• 4m power cable with alligator clips
• Automatic or manual nozzle
