Description

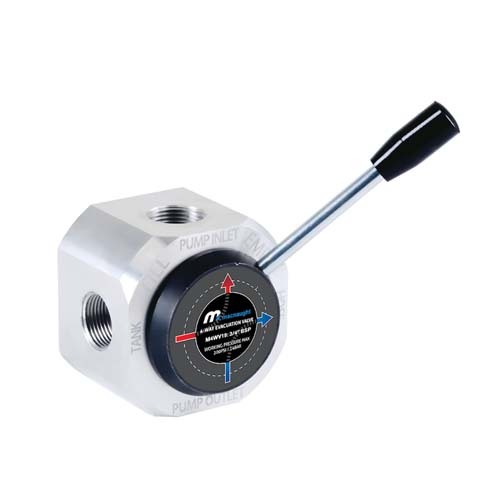

Macnaught 4 Way Evacuation Valve M4WV19

  • 4 Way Evacuation Valve is used for extraction and discharge of fluids which reduces the necessity of multiple valves controlling the fluid.
  • he Fluids mainly can be waste oil, hydraulic, gear and engine oil, ATF, coolants.
  • The valve makes the operation easier for the transfer of fluid by just shifting the lever which reverses the flow of the fluid from filling to discharging the waste oil/fluids or vice versa.
  • This valve requires only one pump for both the operation and is simplified without the hose/pipe connections being bothered.

Technical Specifications

  • Max Working Pressure – 200psi (14bar)
  • Inlet/Outlet Connections (BSP) - 3/4”
  • Bolt Holes Spec – M8x12

Features & Benefits

  • Easy Operation - The 4 Way evacuation valve makes operation easy for the transfer of fluid by reducing the necessity for multiple valves.
  • Easy Installation - Four threaded bolts with spec of M8x1.25 is been provided for convenient installation.
  • Reverse Flow - Extraction and Discharge of fluids can be controlled by just repositioning the handle to the desired requirement.
  • Single Pump - One pump is sufficient for both the operations (discharge and extraction of fluid) which simplifies the plumbing.
  • No Flow restriction - There will be no pressure or volume loss during the flow in either direction.

Package Includes

  • 1 x 4 Way Valve 3/4"

Specifications

  • AIMS SKU A0145810
  • Brand Macnaught
  • Model Number M4WV19
  • Barcode Number 9317147742726
  • Size (inch) 3/4" BSP
  • Type 4 Way Evacuation Valve
SKU: A0145810

Macnaught 4 Way Evacuation Valve - 3/4" BSP M4WV19 M4WV19

Macnaught 4 Way Evacuation Valve M4WV19

$685.05
RRP $763.35
SAVE $78.30 (10%)
