Oil Dispensing Kit 5:1 - Unmetered Oil Gun

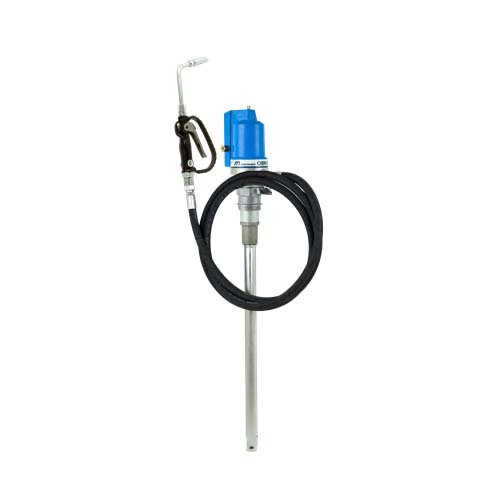

• The T512THG-01 pump kit includes a premium quality T512T-01 (5:1) ratio air-operated oil drum pump c/w 3m x 1/2" oil hose, HG20R-01 oil control gun with rigid extension and non-drip nozzle.
• The kit has an approximate flow rate 8L/min with SAE10 oil and is suitable for oils up to SAE 140, pre-mix coolants.

Technical Specifications

• T512T-01 - 5:1 ratio oil pump (air operated) - using SAE10 oil
• HG20R-01 oil control gun with rigid extension and automatic non-drip nozzle
• 1/2" x 3M long oil hose with fittings to connect the pump to gun
• Max air pressure - 120psi (827 kPa)
• Min air pressure - 60psi (400 kPa)
• Typical air consumption - 5cfm
• Air inlet - 1/4" NPT (F) swivel type
• Oil outlet - 1/2" BSP (F)
• Oil inlet - 1" BSP (F)
• Max static head - 10m
• Fluid types - Mineral based oils (engine oil, gear oil, hydraulic oil, transmission fluid up to SAE140)
• Wetted materials - Zinc, Hard Chrome, Plated steel, Aluminium, Brass, Nitrile rubber, Polyurethane rubber

Features & Benefits

• T512T (5:1) ratio drum pump - proven reliability and peace of mind
• HG20R-01 oil control gun with rigid extension and non-drip nozzle - reliable oil delivery with no leak
• Suitable for oils to SAE140, coolants
• 3m x 1/2" I/D. oil delivery hose including fittings

Package Includes

• T512T-01 (5:1) ratio oil pump (205ltr)
• HG20R-01 Oil control gun with automatic non-drip nozzle
• TD-25K -1/2"x 3m oil hose with fittings
• Instruction manual
