Description

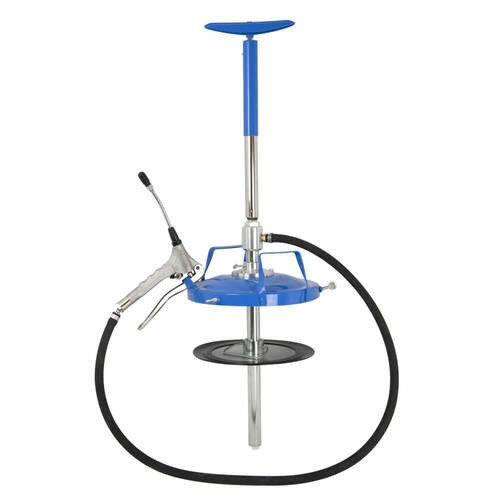

Macnaught's K4 SUPERLUBE™ Portable High Pressure Manual Greasing System provides high-volume/high-pressure greasing in a compact and portable package. The SUPERLUBE™ consists of two main components, a hand operated spring-loaded T handle pump, which dispenses grease from the container to the hose and gun and a patented high pressure/high volume KR Pressurite™ gun. When the gun is set on the high volume position the gun will deliver up to 5,000 psi and when set on the high pressure setting the gun will deliver a lower volume of grease, but at higher pressures ( up to 10,000 psi). The K4 is an economical alternative to the more expensive air-operated greasing systems.

Technical Specifications

  • High volume delivery pressure up to 34,450kPa (5,000psi)
  • High pressure delivery pressure up to 68,900kPa (10,000psi)
  • Provides up to 60 shots of grease with each prime
  • KY SUPERGRIP™ 3 jaw high pressure coupler
  • Up to 0.45g per shot (High pressure setting)
  • Up to 1.25g per shot (High volume setting)
  • Maximum viscosity - Up to NLGI 2
  • Wetted parts - Aluminium, steel, nitrile rubber
  • 3m Flexible delivery hose


Features and Benefits

  • Sliding bung adapter - allows several different height grease pails from 12.5-20kg to be covered by one single model
  • Can be used as a backup for power operated systems - In case of a systems malfunction or breakdown eg. power failure.
  • Manual greasing system - Suitable for users who need a high-pressure greasing capability but don't have or can't use air-powered equipment.
  • Light weight and portable - Holds more grease than a conventional handgun so it can be easily transported to the application.
  • Up to 45 times the grease capacity of a cartridge - Less down time changing grease cartridges
  • Self air bleeding system when first used - No air purging necessary when changing containers
  • Manually operated & light weight with carry handle - Portable, go anywhere system
  • 2 way KR Pressurite Gun - Two grease guns in one
  • High pressure / High volume switch - Can deliver up to 5,000psi on the high volume setting or 10,000psi on the high pressure setting
  • Pressurite gun offers high volume greasing up to 5,000psi - High volume greasing offers superior performance compared to hand held manual grease guns
  • Pressurite gun offers high pressure greasing up to 10,000psi - Air operated performance, clears blocked or damaged grease nipples
  • Fully sealed greasing system - Clean grease to the bearing every time
  • Handles most greases up to NLGI No.2 viscosity - Versatility of use
  • Easy push-down hand operated spring loaded T handle pump - Provides 60 shots at the gun, no pressure developed in container, allows one-handed operation
  • Rubber edged follower plate - Wipes container clean to use all of the grease in the container, prevents air pockets and contamination
  • KY Supergrip Coupler - Positive, no leak connection. Ensures grease gets to the bearing
  • Inbuilt grease strainer - Ensures clean grease to the bearing
  • Fully repairable - Provides a longer service life
  • 3m grease delivery hose - Easy to reach difficult applications, transfer only / Maximum 280psi
  • 360° swivel to gun - Prevents hose kinking / twisting. Easy one handed operation
  • Range of push-on / quick release greasing accessories available - Increased versatility / flexibility for different applications



Specifications

  • AIMS SKU A0082725
  • Brand Macnaught
  • Model Number K4-01
  • Barcode Number 9317147736336
  • Type Manual Grease Pump
  • Suits 20 kg
  • Operation Hand-Operated
SKU: A0082725

Macnaught K4 SUPERLUBE Hand-Operated Grease Pump Suits 12.5kg - 20kg
