Description

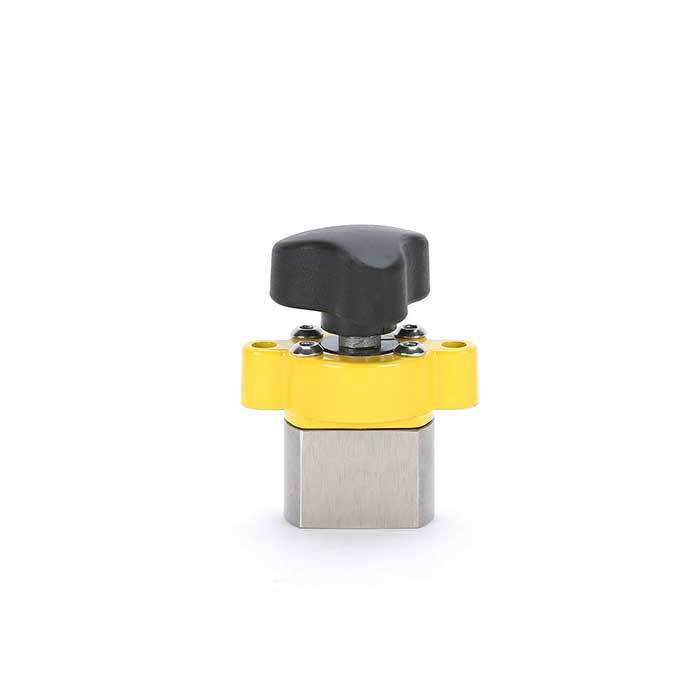

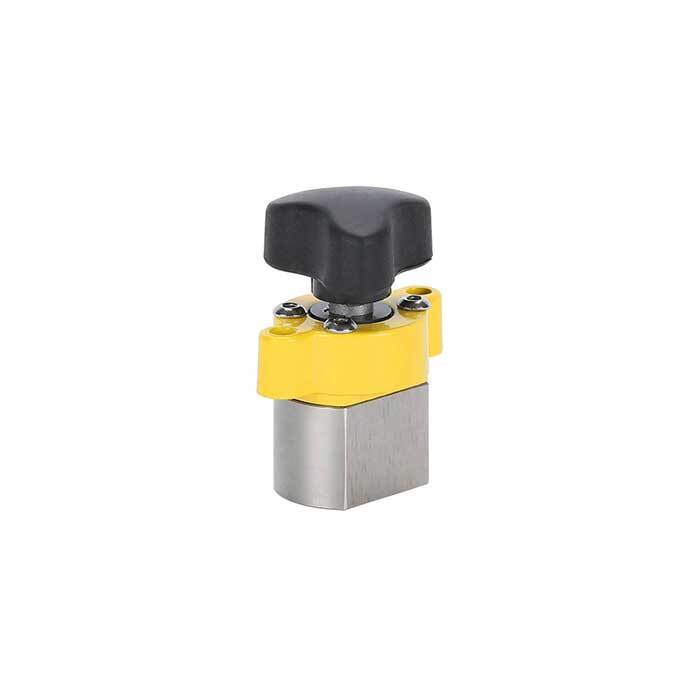

Magswitch MagJig

  • Magswitch MagJigs are ideal for downward pressure clamping.
  • All MagJigs come with a 3/4" standoff for flush mount.
  • Simply drill a hole in the fixturing material and place the clamp in.
  • The MagJigs come with screw holes so you can secure the jig in the fixture.
  • We recommend at least two MagJigs per fixture to minimize slippage.
  • Create fences, assembly jigs, cutting fixtures, blade guards, work supports or anything that makes your work faster, safer and easier.

Specifications

  • AIMS SKU A0160215
  • Brand Magswitch
  • Model Number 8100818
  • Barcode Number 878628002832
  • Net Weight (kg) 0.1
  • Overall Height (mm) 44.6
  • Max Breakaway (lb) 60
  • Max Breakaway (kg) 27
  • Net Weight (lb) 0.2
  • Magnetic Pole Footprint (mm) 56 x 16
  • (2:1) Shear Working Load (lb) 17
  • (2:1) Shear Working Load (kg) 7
  • Type Mag Jig

Video

SKU: A0160215

Magswitch MagJig 60 Max Breakaway 60lb - 8100818

Magswitch MagJig 60 - 8100818

$42.45
