Description

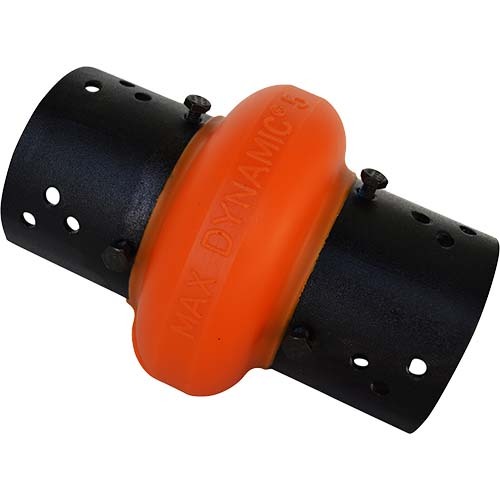

Max Dynamic Coupling Poly Urethane Spacer

About Characteristics of MAX DYNAMIC Coupling

Facility protection for twirl and twist, impact and abrasion.
Very simple replacement and maintenance without oil and grease.
Very simple replacement without the separation of motor or connector on the related line due to it's simple structure.
Possible for the dissimilar connection and assembling with same hub.
Polyurethane based for having good water resistance, chemical resistance.
Highest flexible elasticity on run.
Less noise.

About Application

Specifications

AIMS SKU A0151081

Weight (kg) 0.74

Max. Bore (mm) 28

Torque (kgf.m) 2.2

Max.rpm 7500

Power Rating (kw/rpm) 0.0023

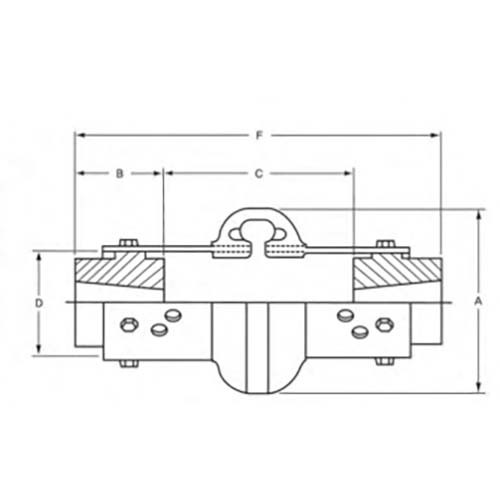

A Out Dia 89

B Hub Length 24

C Max. Shaft Spacing 100

D Hub Dia 47

E Total Length In 146

F Total Length Out 149

C Min. Shaft Spacing 91
