Description

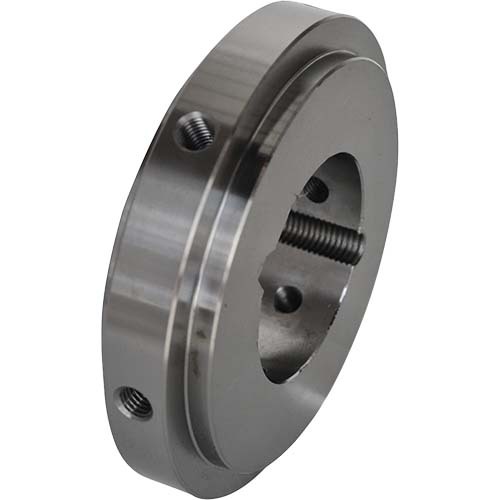

Max Dynamic Coupling Taperlock Hub

  • Coupling taperlock hub.

About Characteristics of MAX DYNAMIC Coupling

  • Facility protection for twirl and twist, impact and abrasion.
  • Very simple replacement and maintenance without oil and grease.
  • Very simple replacement without the separation of motor or connector on the related line due to it's simple structure.
  • Possible for the dissimilar connection and assembling with same hub.
  • Polyurethane based for having good water resistance, chemical resistance.
  • Highest flexible elasticity on run.
  • Less noise.

About Application

  • Agitator
  • Blower
  • Compressor
  • Conveyors
  • Cranes and Hoists
  • Elevators
  • Fans
  • Generators
  • Pump
  • Brewery and Distilling
  • Food Industry
  • Lumber Industry
  • Pulp and Paper Mill
  • Rubber Industry
  • Steel Industry
  • Textile Mills
  • Aggregate Processing Cement

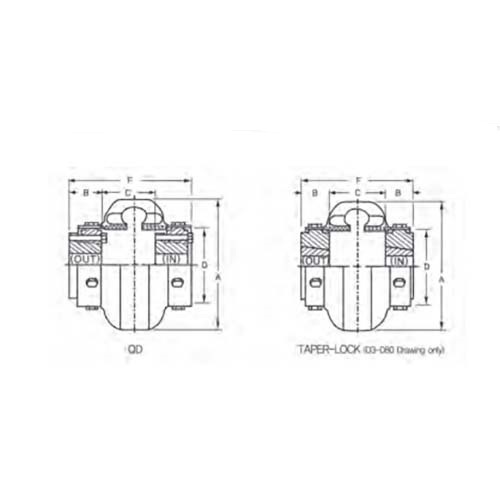

Specifications

  • AIMS SKU A0151070
  • Weight (kg) 0.82
  • C (inch) 43
  • Max. Bore (mm) 25
  • Torque (kgf.m) 4.2
  • Power Rating (kw/rpm) 0.0043
  • B Hub Length 22
  • Taper Lock Bush No. 1008
  • Max. rpm 7500
  • E/F Total Length 87
  • A Out Diameter 102
  • D Out Diameter 59
  • Type Coupling Hub
SKU: A0151070

Max Dynamic E-3 Coupling Taperlock Hub 1008 Bush 102 x 59mm

Max Dynamic Coupling Taperlock Hub
