Description

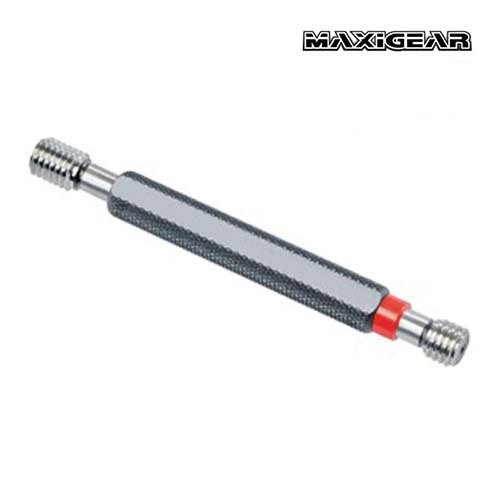

Thread Plug Gauge

  • A thread limit plug gauge is a combination of go plug gauge and no-go plug gauge.
  • The scrap side of the thread plug gauge is marked with a red ring.
  • The go end of the thread plug gauge must screw into the thread cut into a part by hand (without using excessive force).
  • If unable to do so, the thread does not meet the requested standards..
  • The scrap side of the thread plug gauge must not be able to be manually turned more than two turns into the cut thread (without using excessive force).
  • If it can be screwed in more, the thread does not meet the requested standards.
  • The reference temperature for parts and gauges is 20° Celsius.

Specifications

  • AIMS SKU A0144573
  • Brand Maxigear
  • Model Number TPGM01602
  • Size (mm) 2
  • Size M16
  • Type Thread Gage
SKU: A0144573

Maxigear M16 x 2mm Thread Plug Gauge

Thread Plug Gauge

$266.98
