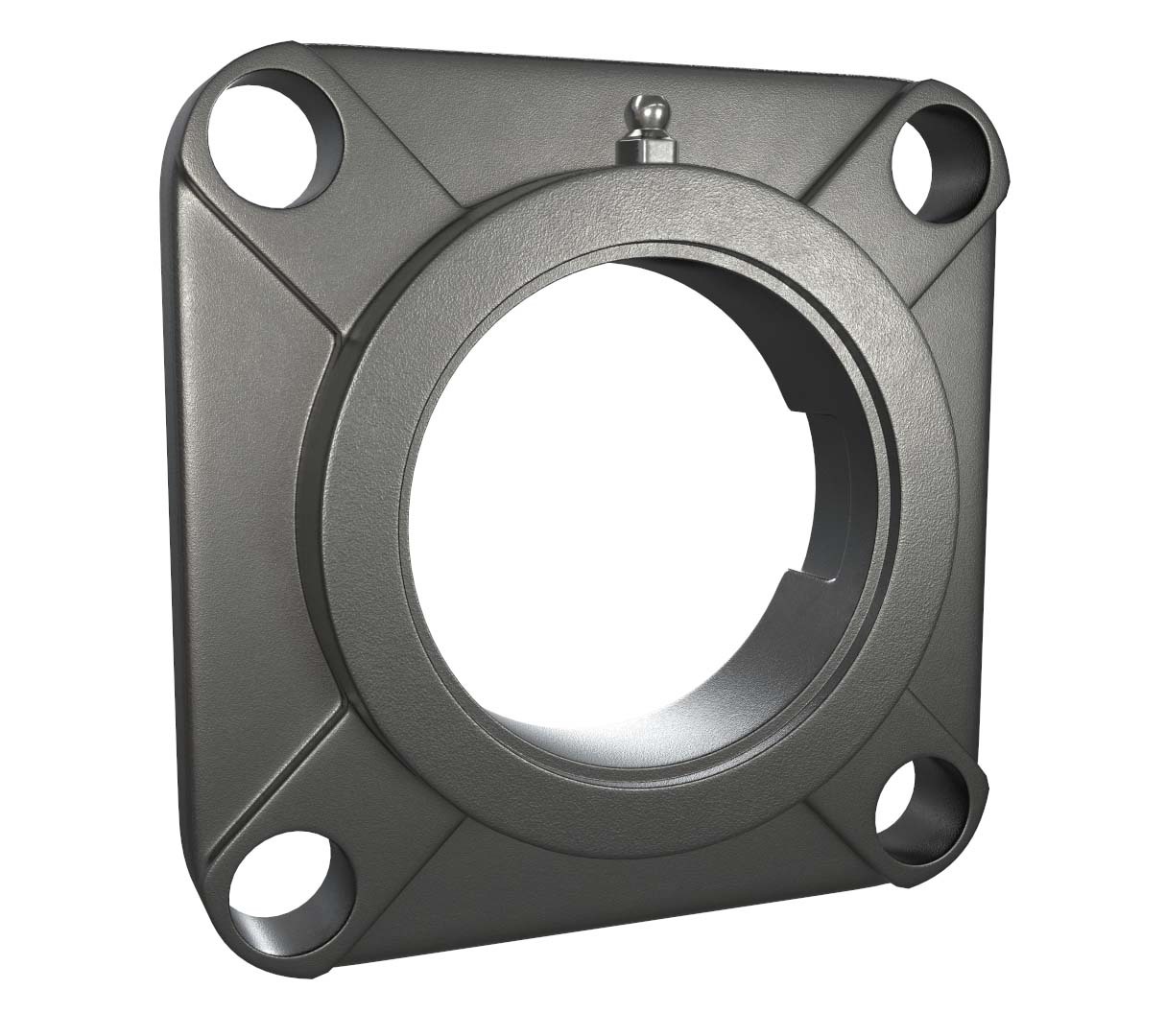

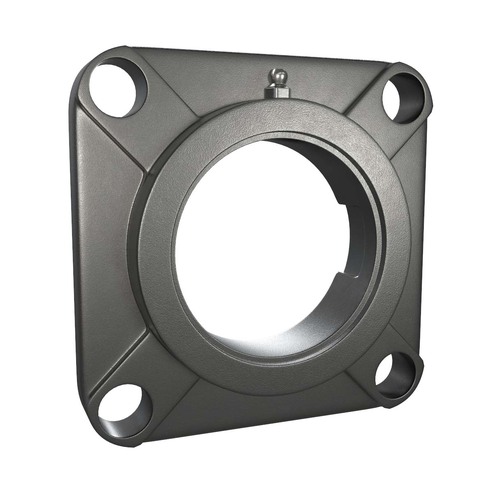

Medium Four Bolt Flange Cast Iron Bearing Housing - FX - FYH

Description

Wide Inner Ring Housings (Medium Four Bolt Flange Bearing Housing)

Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
This range is well known for its versatility between the bearing and housing options as well as ease of installation.

Specifications

AIMS SKU A0147701

Brand FYH

Model Number FX05/FYH

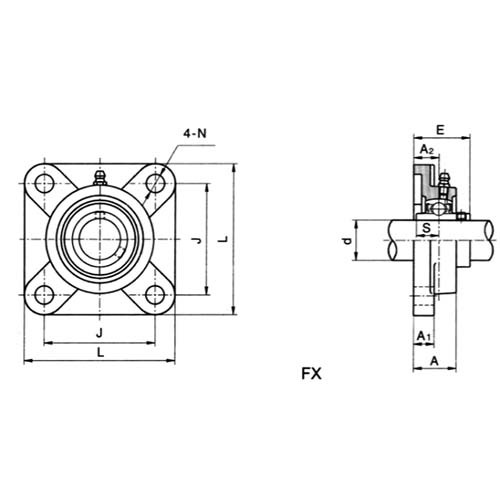

A1 (mm) 13

S (mm) 15.9

A (mm) 30

b (mm) 38.1

L (mm) 108

Factor Fo 13.9

Bolt Size (mm) M10

A0 (mm) 40.2

A2 (mm) 18

J (mm) 83

N (mm) 12

Dynamic Load (cr) kN 19.5

Static Load (c0r) kN 11.3

Shaft Diameter d (mm) 25

Shaft Diameter (d) 25mm (1")

Type Bearing Housing
System of Measurement Metric/Imperial
Material Cast Iron
Item Type Medium Four Bolt Flange Cast Iron Bearing Housing - FX

Calculate Shipping

Resources

Technical Data Sheet
