Medium Pillow Block Cast Iron Bearing Housing PX Series - FYH

Description

Wide Inner Ring Housings (Medium Pillow Block Bearing Housing)

Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
This range is well known for its versatility between the bearing and housing options as well as ease of installation.

Specifications

AIMS SKU A0147868

Brand FYH

Model Number PX08/FYH

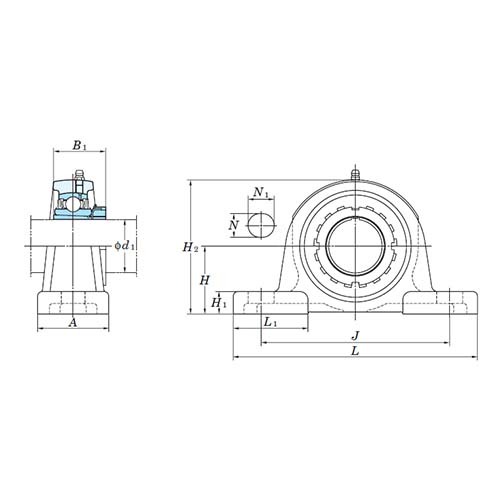

L1 (mm) 71

Bolt Size (mm) M16

Shaft Diameter (d) 40mm (1 1/2")

Shaft Diameter d (mm) 40

Static Load (c0r) kN 21.3

Dynamic Load (cr) kN 34.1

N1 (mm) 32

N (mm) 20

J (mm) 156

H1 (mm) 21

Factor Fo 14

L (mm) 222

h2 (mm) 114

H (mm) 58.7

b (mm) 49.2

A (mm) 67

S (mm) 19

Type Bearing Housing
System of Measurement Metric/Imperial
Material Cast Iron
Item Type Medium Pillow Block

Calculate Shipping

Resources

Technical Data Sheet
