Description

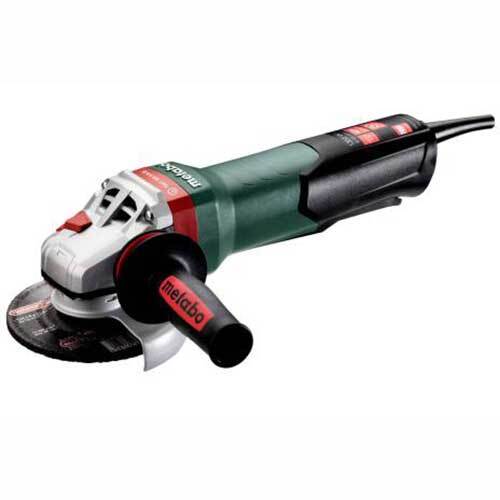

Metabo WPB 13-125 Quick Angle Grinder w/ Paddle Switch

  • Long service life for demanding applications: powerful and robust angle grinder with highest power density in its class for quick work progress.
  • Longer service life, more power: the Metabo Marathon-motor with patented dust protection, up to 20% more overload capacity and 50% more torque.
  • Tool free, fast disc change at the touch of a button with the Metabo M-Quick-System.
  • Tool-free adjustable guard; twist-proof.
  • Low-vibration side handle Metabo VibraTech (MVT).

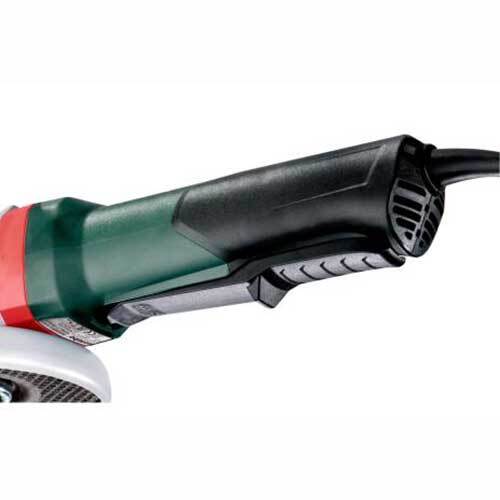

  • Paddle switch with dead man function: safe to operate due to an ergonomically integrated non-slip switch.
  • Fastest brake system for highest user safety: patented, mechanical disc brake stops the disc within 2 seconds after switching off, even in the event of a power cut.
  • Metabo S-automatic mechanical safety clutch: minimises kick-back to the lowest level when the disc jams unexpectedly - for maximum user safety and swift progress.
  • Gear housing can be unscrewed, rotated in 90° steps and remounted for left-handed operation or cutting.
  • Auto-stop carbon brushes to protect the motor.

Note

  • The machine shown may differ in equipment and technical details depending on the configuration.
  • Kindly pay attention to the content and product description.
  • Accessories are included only if listed in the contents.

Contents

  • Guard
  • Inner support flange
  • M-Quick flange nut
  • Metabo VibraTech (MVT) side handle

Technical Data

  • Disc-Ø: 125 mm // 5"
  • Rated input power: 1300W
  • No-load speed: 11000 rpm
  • Torque: 3.4 Nm / 30.1 ft. lbs

Characteristics

Disc-Ø 125 mm // 5 "
Rated input power 1300 W
Output power 820 W
No-load speed 11000 rpm
Revolutions at rated load 8000 rpm
Torque 3.4 Nm / 30.1 ft. lbs
Spindle thread M 14
Handle circumference 197 mm / 7 3/4 "
Weight (without power cable) 2.6 kg / 5.7 lbs
Cable length 4 m / 13 "

Vibration

Surface grinding 6 m/s²
Uncertainty of measurement K 1.5 m/s²
Grinding with sandpaper 2.5 m/s²
Uncertainty of measurement K 1.5 m/s²

Noise Emission

Sound pressure level 93 dB(A)
Sound power level (LwA) 104 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0175060
  • Brand Metabo
  • Model Number 603631190
  • Barcode Number 4061792176393
  • Type Angle Grinder
SKU: A0175060

Metabo 1300W 125mm Angle Grinder w/ Paddle Switch, Brake - 603631190

Metabo WPB 13-125 Quick Angle Grinder w/ Paddle Switch

$424.83
