Description

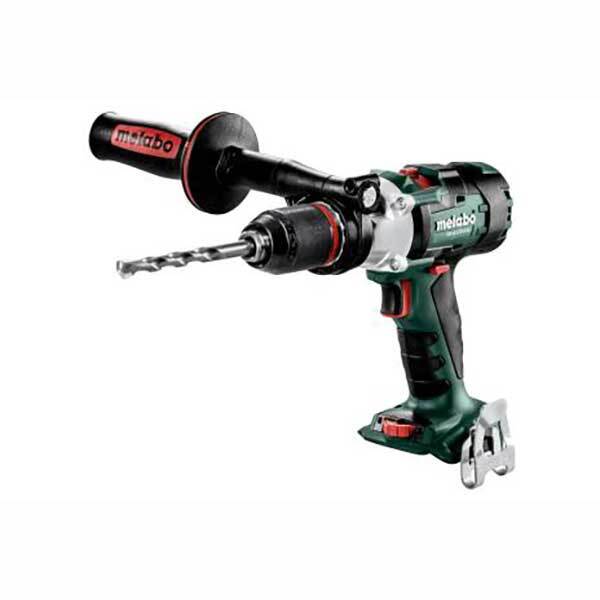

Metabo SB 18 LTX-3 BL I Cordless Hammer Drill - 602356840

  • Brushless 3-speed cordless hammer drill with maximum power for demanding applications.
  • Third speed setting with high torque (max. 3,800/min) for extended range of application and even faster drilling progress.
  • Selectable "impuls" mode for removal of stubborn screws and for spot-drilling on smooth surfaces.
  • Unique Metabo brushless motor for quick work progress and highest efficiency when drilling and screwdriving.
  • Precision Stop: electronic torque control with increased precision for precise, delicate working.
  • High-performance impact mechanism for optimum drilling performance.
  • Spindle with hexagonal recess for screwdriver bits for working without chuck.
  • Collar (Ø 43 mm) for versatile use.
  • Integrated working light to illuminate the contact area.
  • Robust die cast aluminium gear housing for optimum heat dissipation and long service life.
  • With handy belt hook and bit case which can be fixed either on the right or left side.
  • With metaBOX, the intelligent solution for transport and storage.

Note

  • The machine shown may differ in equipment and technical details depending on the configuration.
  • Kindly pay attention to the content and product description.
  • Accessories are included only if listed in the contents.

Contents

  • Futuro Plus keyless chuck with metal sleeve
  • metaBOX 145 L
  • without battery pack, without charger
  • Side handle
  • Belt hook and bit case

Technical Data

  • Battery voltage: 18V
  • Maximum torque - soft: 60Nm / 531 in-lbs
  • Maximum torque, hard: 120Nm / 1062 in-lbs
  • Drill-Ø masonry: 16mm / 5/8 "
  • Drill Ø steel: 13 mm / 1/2 "
  • Drill-Ø soft wood: 65mm / 2 1/2 "
  • No-load speed: 0 - 500 / 0 - 2050 / 0 - 3800 rpm

Characteristics

Type of battery pack Li-Power
Battery voltage 18 V
Maximum torque - soft 60 Nm / 531 in-lbs
Pulse torque 65 Nm / 48 in-lbs
Maximum torque, hard 120 Nm / 1062 in-lbs
Adjustable torque 1 - 20 Nm // 9 - 177 in-lbs
Drill-Ø masonry 16 mm / 5/8 "
Drill Ø steel 13 mm / 1/2 "
Drill-Ø soft wood 65 mm / 2 1/2 "
No-load speed 0 - 500 / 0 - 2050 / 0 - 3800 rpm
Maximum impact rate 32300 bpm
Chuck capacity 1.5 - 13 mm // 1/16 - 1/2 "
Weight without battery pack 1.9 kg / 4.2 lbs
Weight with battery pack 2.4 kg / 5.3 lbs

Vibration

Drilling in metal 3.8 m/s²
Uncertainty of measurement K 1.5 m/s²
Impact drilling concrete 17.7 m/s²
Uncertainty of measurement K 1.5 m/s²

Noise Emission

Sound pressure level 71 dB(A)
Sound power level (LwA) 82 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0174939
  • Brand Metabo
  • Model Number 602356840
  • Barcode Number 4007430298195
  • Type Hammer Drill
SKU: A0174939

Metabo 18V Brushless 3 Speed LTX Class Hammer Drill in MetaLoc II Case - Tool Only

SB 18 LTX-3 BL I Cordless Hammer Drill - 602356840

$497.33
