Description

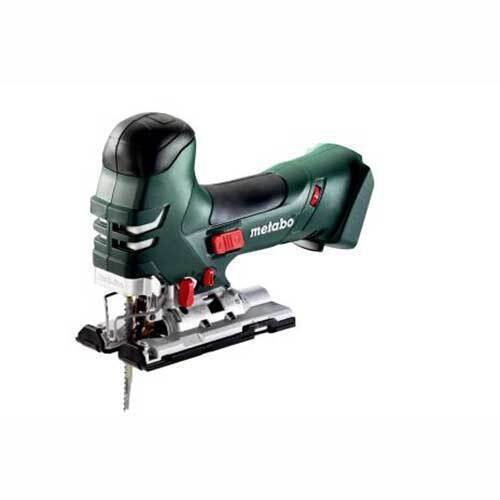

Metabo STA 18 LTX 140 Cordless Jigsaw

  • Extremely powerful jigsaw with VTC-Electronics for fast cuts into softwood of up to 140 mm
  • High sawing performance: in excess of 40 metres in chipboard (19 mm) with only one battery pack charge
  • Extremely handy due to small handle size and soft-grip surface
  • Precise and material-matched sawing due to the variable stroke rate, pendulum stroke and low-lying saw blade guidance with spring support
  • Metabo "Quick" for changing saw blades without tools and with automatic ejection
  • Convenient automatic start-up with automatic stroke rate acceleration
  • Simple bevel cuts thanks to footplate with rest points that can be adjusted without tools
  • Selectable shaving blower function ensures free view of cutting line
  • Integrated LED work light for illumination of the cutting line
  • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised stroke rates, which remain constant under load
  • Restart protection: prevents unintentional start-up after battery pack change
  • Long service life thanks to optimum gear and motor design and robust die-cast aluminium gear housing

Contents

  • Plastic guard plate
  • Chip guard plate
  • Without battery pack, without charger

Technical Data

  • Battery voltage: 18 V
  • Cutting depth wood: 140 mm / 5 1/2 "
  • Strokes in idle: 1000 - 3000 rpm

Characteristics

Type of battery pack LiHD
Battery voltage 18 V
Cutting depth wood 140 mm / 5 1/2 "
Cutting depth NF metal 35 mm / 1 3/8 "
Cutting depth sheet steel 10 mm / 3/8 "
Swivel range from/to: - 45 / + 45 °
Pendulum stroke levels 4
Strokes in idle 1000 - 3000 rpm
Saw blade stroke 26 mm / 1 1/32 "
Weight without battery pack 2.3 kg / 5.1 lbs
Weight with battery pack 2.7 kg / 6 lbs



Vibration

Sawing wood 12 m/s²
Uncertainty of measurement K 1.8 m/s²
Sawing metal 12 m/s²
Uncertainty of measurement K 2.3 m/s²



Noise Emission

Sound pressure level 90 dB(A)
Sound power level (LwA) 101 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0175002
  • Brand Metabo
  • Model Number 601405890
  • Barcode Number 4007430236944
  • Type Jigsaw
SKU: A0175002

Metabo 18V Cordless Jigsaw Barrel 3000rpm - Tool Only

Metabo STA 18 LTX 140 Cordless Jigsaw - 601405890

$336.53
