Description

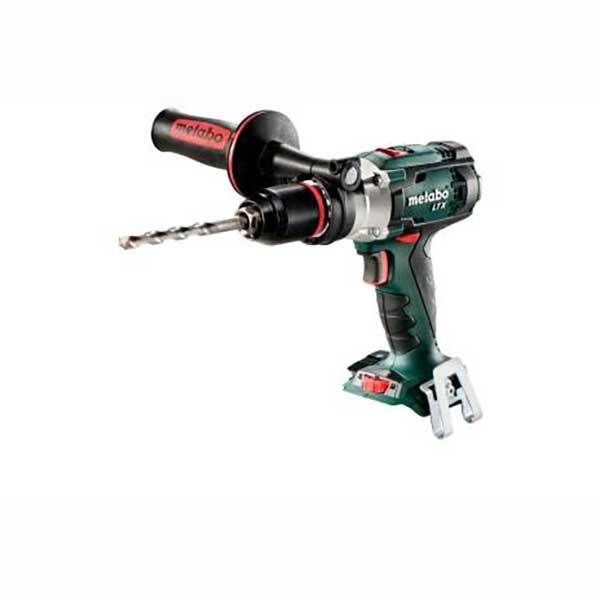

Metabo SB 18 LTX IMPULS Cordless Hammer - 602192890

  • Robust cordless hammer drill with maximum power for very demanding applications.
  • Selectable "impuls" mode for removal of stubborn screws and for spot-drilling on smooth surfaces.
  • Powerful Metabo 4-pole motor for fast drilling and screwdriving.
  • High-performance impact mechanism for optimum drilling performance.
  • Spindle with hexagonal recess for screwdriver bits for working without chuck.
  • Collar (Ø 43 mm) for versatile use.
  • Integrated working light to illuminate the contact area.
  • Robust die cast aluminium gear housing for optimum heat dissipation and long service life.
  • Handy belt hook, can be fixed either on the right or left side.

Note

  • The machine shown may differ in equipment and technical details depending on the configuration.
  • Kindly pay attention to the content and product description.
  • Accessories are included only if listed in the contents.

Contents

  • Futuro Plus keyless chuck with metal sleeve
  • without battery pack, without charger
  • Side handle
  • Belt hook

Technical Data

  • Battery voltage: 18V
  • Maximum torque - soft: 55Nm / 487 in-lbs
  • Maximum torque, hard: 110Nm / 974 in-lbs
  • Drill-Ø masonry: 16mm / 5/8"
  • Drill Ø steel: 13mm / 1/2"
  • Drill-Ø soft wood: 65mm / 2 1/2 "
  • No-load speed: 0 - 500 / 0 - 1700 rpm

Characteristics

Battery voltage 18 V
Maximum torque - soft 55 Nm / 487 in-lbs
Pulse torque 60 Nm / 531 in-lbs
Maximum torque, hard 110 Nm / 974 in-lbs
Adjustable torque 1.5 - 24 Nm // 13 - 212 in-lbs
Drill-Ø masonry 16 mm / 5/8 "
Drill Ø steel 13 mm / 1/2 "
Drill-Ø soft wood 65 mm / 2 1/2 "
No-load speed 0 - 500 / 0 - 1700 rpm
Maximum impact rate 32300 bpm
Chuck capacity 1.5 - 13 mm // 1/16 - 1/2 "
Weight without battery pack 1.8 kg / 4 lbs
Weight with battery pack 2.2 kg / 4.9 lbs

Vibration

Drilling in metal 2.5 m/s²
Uncertainty of measurement K 1.5 m/s²
Impact drilling concrete 13 m/s²
Uncertainty of measurement K 1.5 m/s²
Screwdriving without impact 2.5 m/s²
Uncertainty of measurement K 1.5 m/s²

Noise Emission

Sound pressure level 80 dB(A)
Sound power level (LwA) 91 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0174938
  • Brand Metabo
  • Model Number 602192890
  • Barcode Number 4007430239051
  • Type Hammer Drill
SKU: A0174938

Metabo 18V LTX Class Cordless Hammer Drill 110Nm - Tool Only

Metabo SB 18 LTX IMPULS Cordless Hammer - 602192890

$351.71
