Description

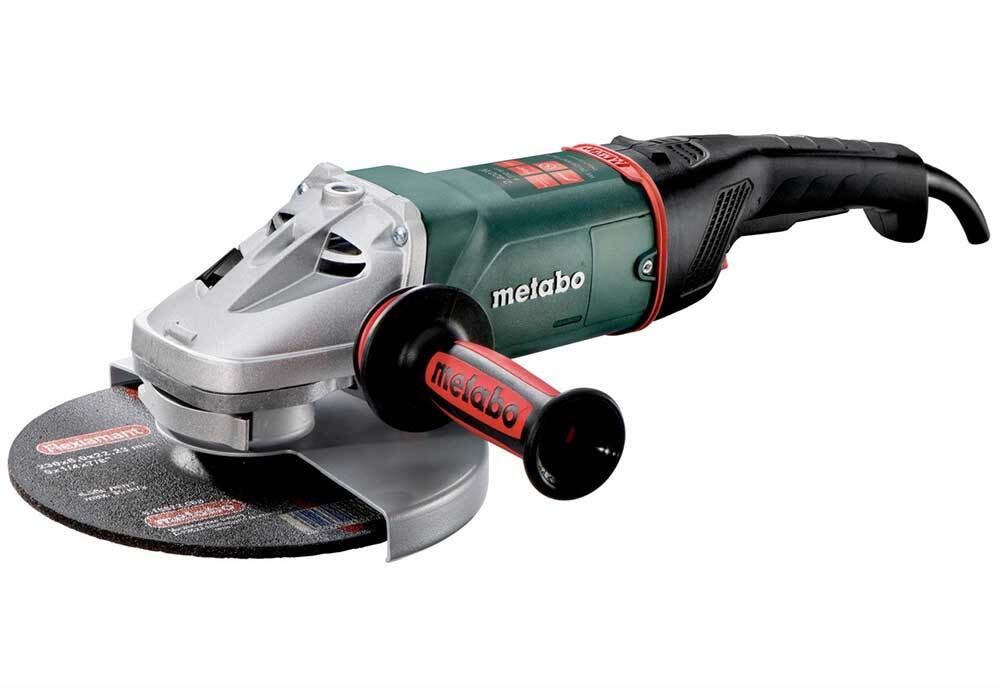

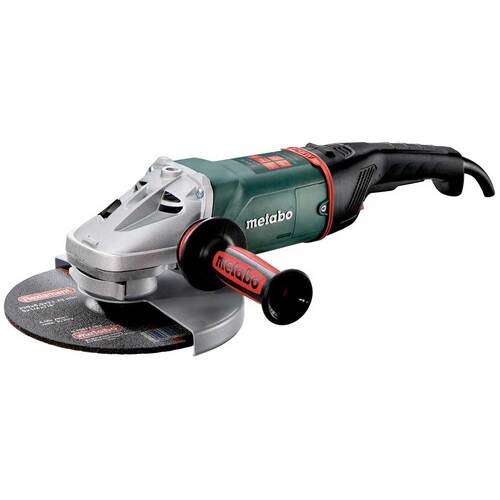

Metabo WE 24-230 MVT QUICK (606470190) Angle Grinder

  • Metabo Marathon motor with patented dust protection for long service life.
  • Electronic safety shutdown: reduces kickback if the disc stops unexpectedly - for high user safety.
  • Deadman's switch for high user protection.
  • Rotating back handle and side handle can be mounted at 3 positions for optimum handle position also when cutting.
  • Metabo Quick for tool-free disc change by means of a quick-locking nut.
  • Tool-free adjustable guard; twist-proof.
  • Starting current limitation prevents the actuation of the lock on start-up.
  • Electronic overload protection and restart protection.
  • Metabo VibraTech (MVT): integrated damping system and side handle to reduce vibrations in order to protect the user’s health.
  • Metabo safety switch prevents unintentional start.
  • Auto-stop carbon brushes to protect the motor.
  • LED signal indicates triggered restart protection or overheating.

Note

  • The machine shown may differ in equipment and technical details depending on the configuration.
  • Kindly pay attention to the content and product description.
  • Accessories are included only if listed in the contents.

Contents

  • Guard
  • Inner support flange
  • Quick-locking nut
  • Metabo VibraTech (MVT) side handle

Technical Data

  • Disc-Ø: 230 mm // 9 "
  • Rated input power: 2400W
  • No-load speed: 6600 rpm
  • Torque: 17 Nm / 150 in-lbs
Characteristics
Disc-Ø 230 mm // 9 "
Rated input power 2400 W
Output power 1600 W
No-load speed 6600 rpm
Revolutions at rated load 4600 rpm
Torque 17 Nm / 150 in-lbs
Spindle thread M 14
Handle circumference 144 mm / 5.669 "
Weight (without power cable) 5.8 kg / 12.8 lbs
Cable length 4 m / 13 ft

Vibration

Surface grinding 6.2 m/s²
Uncertainty of measurement K 1.5 m/s²
Grinding with sandpaper 2.5 m/s²
Uncertainty of measurement K 1.5 m/s²

Noise Emission

Sound pressure level 94 dB(A)
Sound power level (LwA) 105 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0175161
  • Brand Metabo
  • Model Number 606470190
  • Barcode Number 4007430268235
  • Type Angle Grinder
SKU: A0175161

Metabo 606470190 Angle Grinder Ø230 mm, 2,400W, 3-position Side Handle

Metabo WE 24-230 MVT QUICK (606470190) Angle Grinder

$422.93
