Description

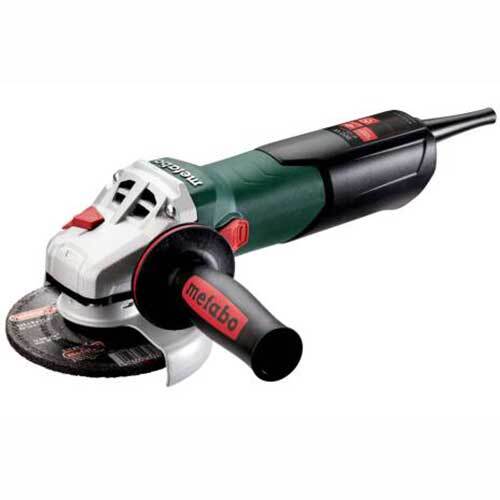

Metabo W 9-125 Quick Angle Grinder

  • Low fatigue as never before: compact angle grinder with the smallest handle circumference in its class for perfect ergonomics.
  • Longer service life, more power: the Metabo Marathon motor with patented dust protection, up to 20% more overload capacity and 50% more torque.
  • Tool-free, fast disc change at the touch of a button with the Metabo M-Quick-System.
  • Tool-free adjustable guard; twist-proof.
  • Metabo S-automatic mechanical safety clutch: minimises kick-back to the lowest level when the disc jams unexpectedly - for maximum user safety and swift progress.
  • Restart protection after power interruption.
  • Gear housing can be unscrewed, rotated in 90° steps, and remounted for left-handed operation or cutting.
  • Auto-stop carbon brushes to protect the motor.

Note

  • The machine shown may differ in equipment and technical details depending on the configuration.
  • Kindly pay attention to the content and product description.
  • Accessories are included only if listed in the contents.

Contents

  • Guard
  • Inner support flange
  • M-Quick flange nut
  • Side handle

Technical Data

  • Disc-Ø: 125 mm // 5"
  • Rated input power: 900W
  • No-load speed: 10500 rpm
  • Torque: 2.5 Nm / 22 in-lbs

Characteristics

Disc-Ø 125 mm // 5"
Rated input power 900 W
Output power 550 W
No-load speed 10500 rpm
Revolutions at rated load 7500 rpm
Torque 2.5 Nm / 22 in-lbs
Spindle thread M 14
Handle circumference 193 mm / 7.5594 "
Weight (without power cable) 2.1 kg / 4.6 lbs
Cable length 4 m / 13 ft

Vibration

Surface grinding 6 m/s²
Uncertainty of measurement K 1.5 m/s²
Grinding with sandpaper 2.5 m/s²
Uncertainty of measurement K 1.5 m/s²

Noise Emission

Sound pressure level 93 dB(A)
Sound power level (LwA) 104 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0175048
  • Brand Metabo
  • Model Number 600374000
  • Barcode Number 4007430240989
  • Type Angle Grinder
SKU: A0175048

Metabo 900W Angle Grinder Safety Clutch, Quick Locking Nut - 600374000

Metabo W 9-125 Quick Angle Grinder

$311.66
