Description

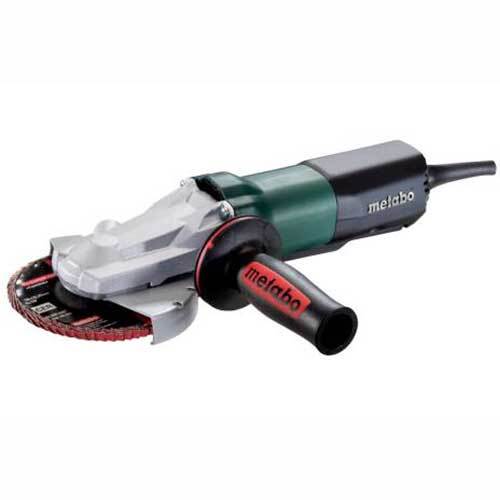

Metabo 613069000 Flat-head Angle Grinde W/ Paddle Switch

  • Most compact flat-head angle grinder for working at acute angles down to 43°
  • Particularly developed for the removal of weld slag, rust or paint in narrow frame constructions and for working in tight spaces
  • Metabo Marathon motor with patented dust protection for long service life
  • Constamatic (C)-Full wave electronics: fast work progress by means of almost constant speed under load
  • Metabo Quick for tool-free disc change by means of a quick-locking nut
  • Tool-free adjustable guard; twist-proof

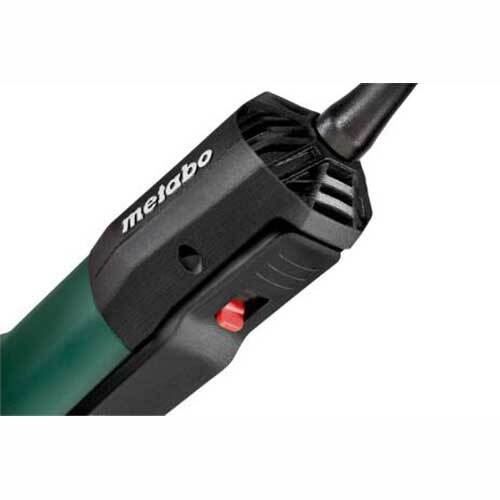

  • Paddle switch with deadmans function: safe to operate due to an ergonomically integrated non-slip switch
  • Electronic safety shutdown: reduces kickback if the disc stops unexpectedly - for high user safety
  • Electronic overload protection, soft start and restart protection
  • Auto-stop carbon brushes to protect the motor.

Note

  • The machine shown may differ in equipment and technical details depending on the configuration.
  • Kindly pay attention to the content and product description.
  • Accessories are included only if listed in the contents.

Contents

  • Guard
  • Side handle
  • 1 Flap disc Flexiamant Super Convex (125mm; P60)
  • Inner support flange
  • Quick-locking nut

Technical Data

  • Minimum accessible angle: 43°
  • Disc-Ø: 125 mm / 5"
  • Rated input power: 910W
  • No-load speed: 10500rpm
  • Torque: 2 Nm / 18 in-lbs

Characteristics

Minimum accessible angle 43 °
Disc-Ø 125 mm / 5 "
Rated input power 910 W
Output power 430 W
No-load speed 10500 rpm
Revolutions at rated load 8200 rpm
Torque 2 Nm / 18 in-lbs
Spindle thread M 14
Weight (without power cable) 2.1 kg / 4.6 lbs
Cable length 4 m / 13 ft

Vibration

Surface grinding 5 m/s²
Uncertainty of measurement K 1.5 m/s²
Grinding with sandpaper 2.5 m/s²
Uncertainty of measurement K 1.5 m/s²

Noise Emission

Sound pressure level 88 dB(A)
Sound power level (LwA) 99 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0175066
  • Brand Metabo
  • Model Number 613069000
  • Barcode Number 4007430240743
  • Type Angle Grinder
SKU: A0175066

Metabo 900W Flat-Head Angle Grinde W/ Paddle Switch - WEPF 9-125 Quick

Metabo 613069000 Flat-head Angle Grinde W/ Paddle Switch

$461.27
