Description

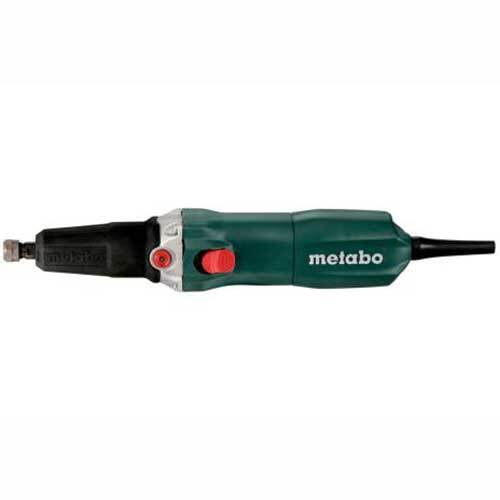

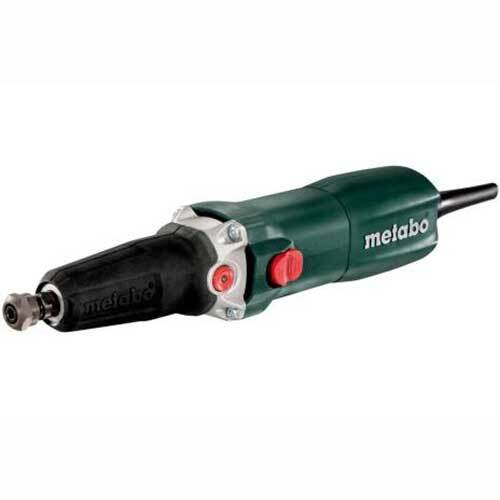

Metabo GE 710 Plus Die Grinder - 600616190

  • Long grinding spindle - ideal for working on hard to reach places.
  • Spindle lock for simple change of tools.
  • Aluminium die-cast bearing flange for long service life of the machine.
  • Vario-Constamatic (VC)- Electronics for work with materials requiring customised speeds, which remain almost constant under load.
  • Thumbwheel for Speed Preselection.
  • Electronic safety shutdown of the motor for safe working in case the tool stops unexpectedly.
  • Restart protection: prevents unintentional start-up after power supply interruption.
  • Electronic overload protection for long service life.
  • Precise collar for stationary use.
  • Removable protective rubber cap for comfortable and safe working.
  • Slim design for ideal handling.
  • Precision collet for precise concentricity.
  • Metabo Marathon motor with patented dust protection for long service life.

Note

  • The machine shown may differ in equipment and technical details depending on the configuration.
  • Kindly pay attention to the content and product description.
  • Accessories are included only if listed in the contents.

Contents

  • Collet 6 mm
  • Collet 1/4“
  • Protective rubber cap
  • 1 Open-jawed spanner

Technical Data

  • No-load speed: 13000 - 34000rpm
  • Rated input power: 710W
  • Revolutions at rated load: 24000 rpm
  • Collet chuck bore: 6mm / 0.2362"

Characteristics

No-load speed 10000 - 30500 rpm
Rated input power 710 W
Output power 430 W
Revolutions at rated load 24000 rpm
Collar diameter 43 mm / 1 11/16 "
Collet chuck bore 6 mm / 0.2362 "
Weight (without power cable) 1.6 kg / 3.5 lbs
Cable length 4 m / 13 ft

Vibration

Surface grinding (up to Ø 25 mm) 5.6 m/s²
Uncertainty of measurement K 1.5 m/s²
Surface grinding (up to Ø 50 mm) 16.9 m/s²
Uncertainty of measurement K 1.5 m/s²

Noise Emission

Sound pressure level 80 dB(A)
Sound power level (LwA) 91 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0175068
  • Brand Metabo
  • Model Number 600616190
  • Barcode Number 4007430212368
  • Type Die Grinder
SKU: A0175068

Metabo GE 710 Plus Die Grinder 710 W, 1/4" Collett, Long Spindle

Metabo GE 710 Plus Die Grinder - 600616190

$547.65
