Description

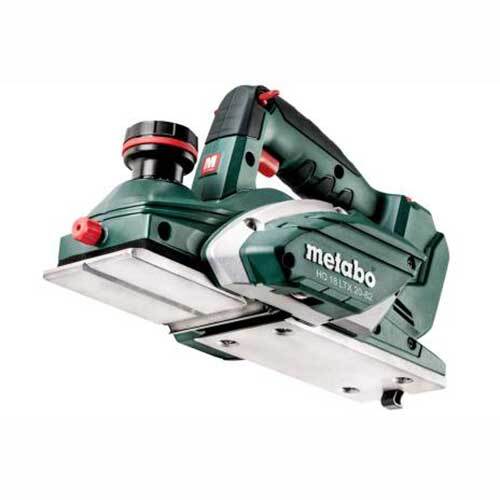

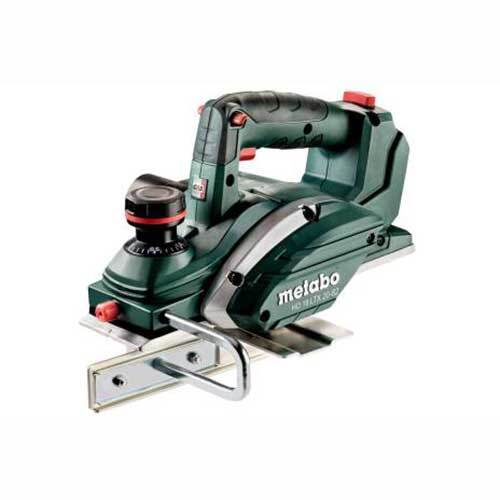

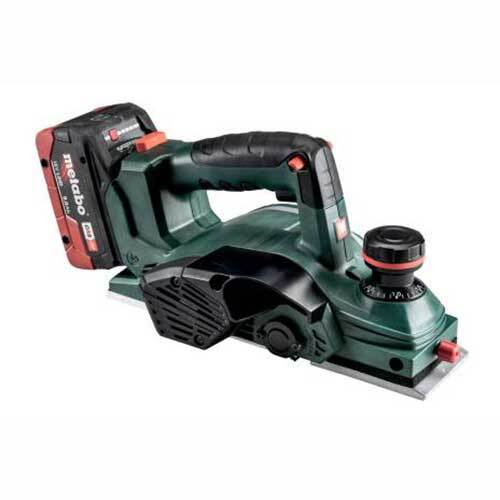

Metabo HO 18 LTX 20-82 Cordless Planer

  • Light, compact cordless planer for planing, rebating and chamfering
  • Adjustable planer depth and notch depth
  • Aluminium die cast and milled cut planer base with V-groove for easy chamfering
  • Parallel guide for precise guiding of the planer
  • Grip area with non-slip soft-grip surface
  • Extraction possibility by means of connecting an all-purpose vacuum cleaner (not included)
  • Angled chip ejection adapter for controlled ejection of the wood shavings
  • Easy to empty textile dust bag for working without extraction facilities
  • Strap on the planer base for stopping the machine and to protect the work piece
  • Easy blade change of the robust reversible carbide planer blades
  • Soft start and overload protection for long service life of motor and drive

Contents

  • Reversible carbide planer blades
  • Chip ejection adapter
  • Textile dust bags
  • Without battery pack, without charger
  • Parallel Guide
  • Depth gauge

Technical Data

  • Battery voltage: 18 V
  • Planing width: 82 mm
  • Adjustable planing depth: 0 - 2 mm
  • No-load speed: 16000 rpm

Characteristics

Type of battery pack Li-Power
Battery voltage 18 V
Planing width 82 mm
Adjustable planing depth 0 - 2 mm
Maximum notch depth 9 mm
No-load speed 16000 rpm
Length of planer base 295 mm
Weight without battery pack 2.9 kg / 6.4 lbs
Weight with battery pack 3.3 kg / 7.3 lbs



Vibration

Planing soft wood 1.6 m/s²
Uncertainty of measurement K 1.5 m/s²



Noise Emission

Sound pressure level 90 dB(A)
Sound power level (LwA) 101 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0175006
  • Brand Metabo
  • Model Number 602082890
  • Barcode Number 4007430325082
  • Type Planner
SKU: A0175006

Metabo HO 18 LTX 20-82 18V 82mm Cordless Planer (Tool Only) - 602082890

Metabo HO 18 LTX 20-82 Cordless Planer

$340.24
