Description

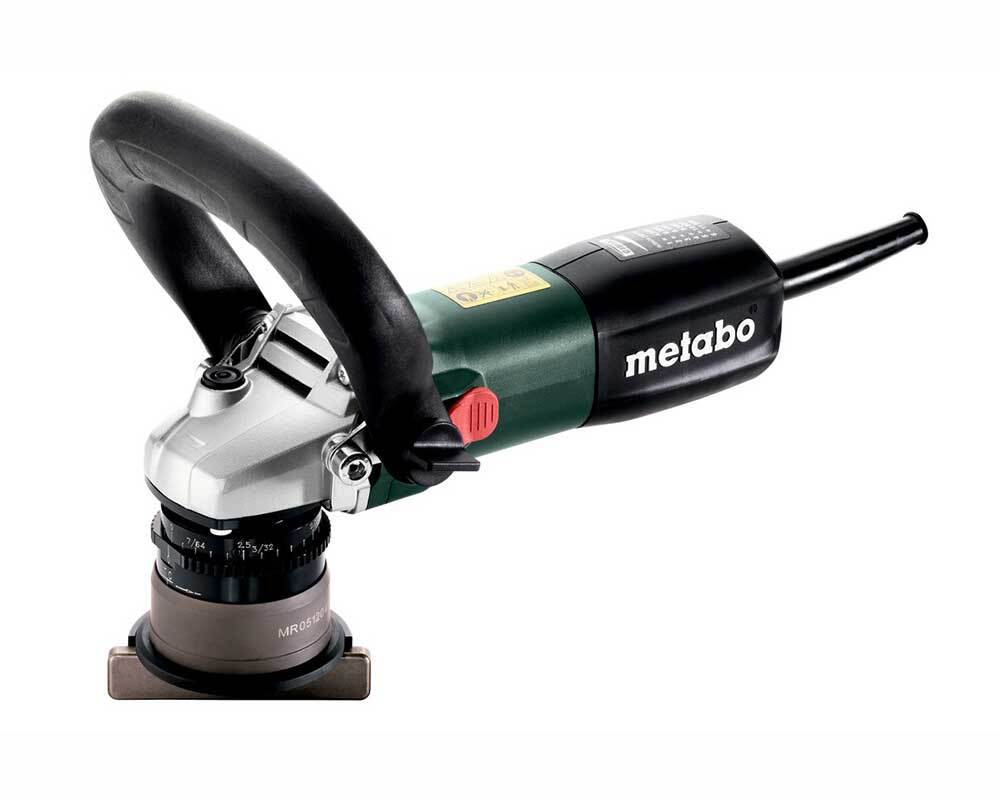

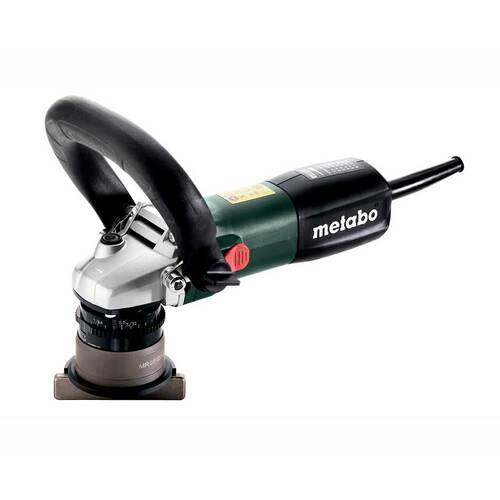

Metabo KFM 9-3 RF Compact Metal Bevelling Tool

Compact metal bevelling tool for 45° chamfers and radii of 2 to 3 mm at visible edges
Surfaces free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion
One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working

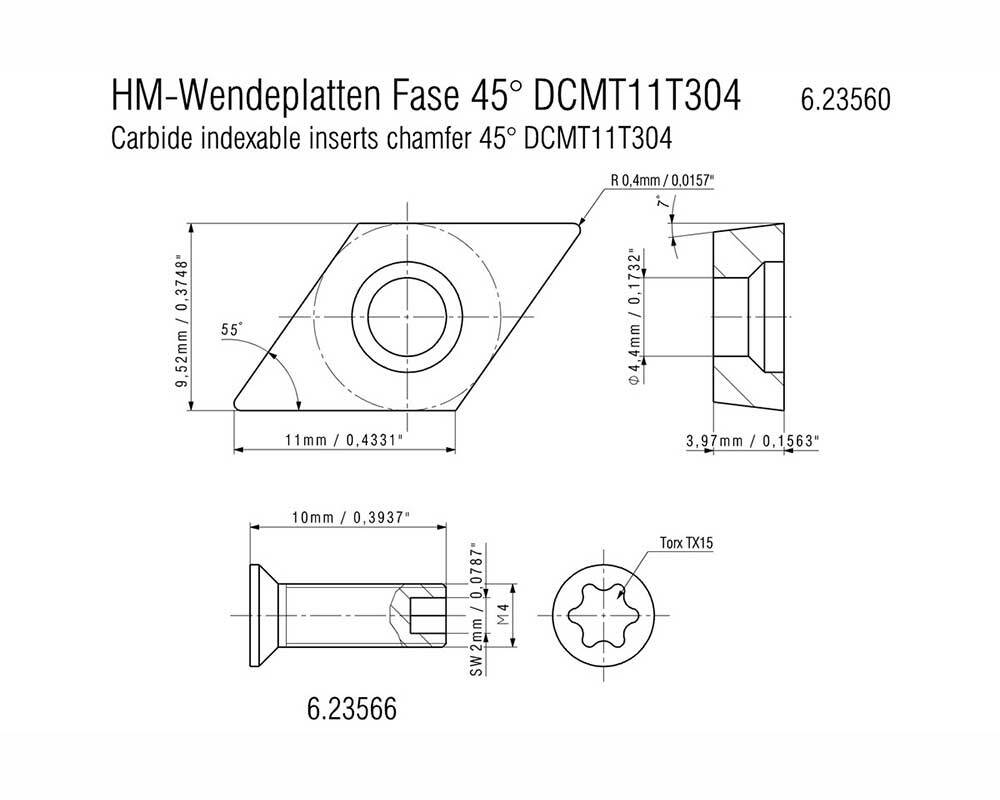

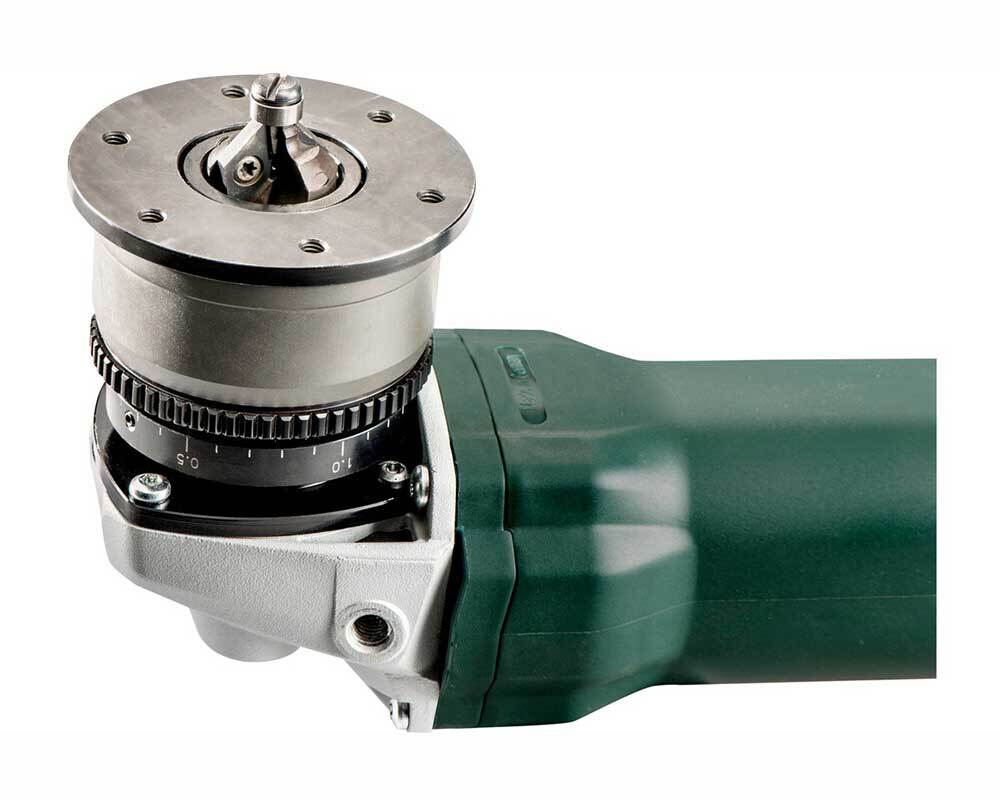

Slim cutter head with standard carbide indexable inserts and ball-bearing stationary seal ring for working in tubes and in curves

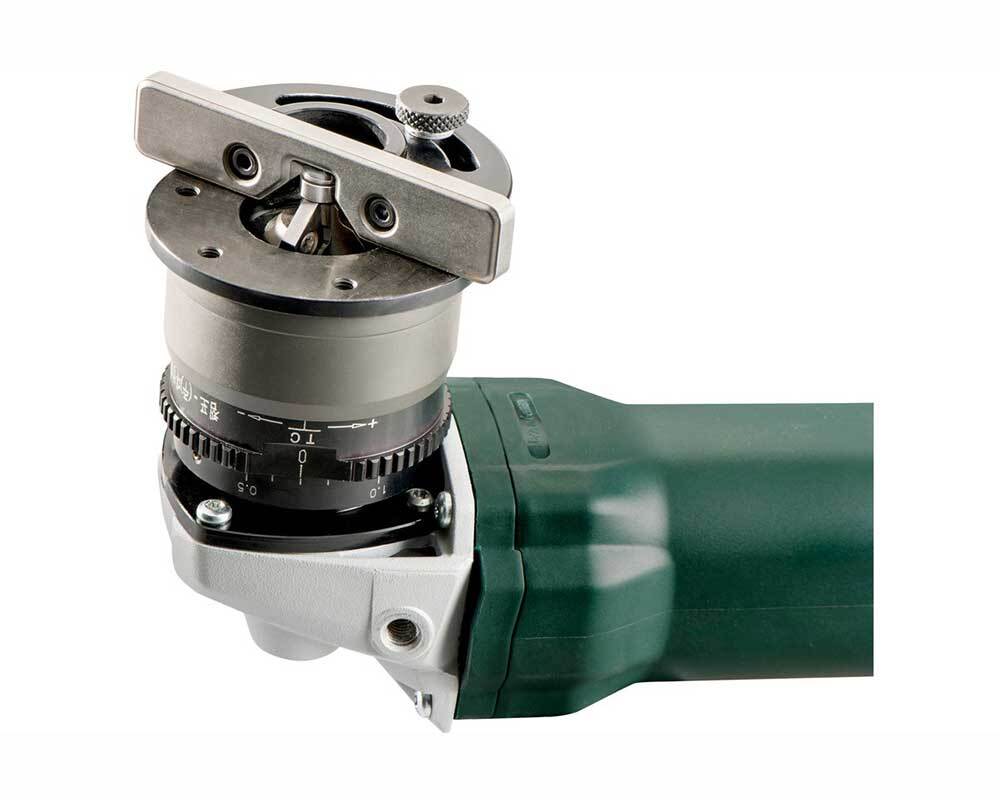

Guide stop for a uniform finish and high quality surface finish when processing straight edges
Bail handle adjusts without tools for secure, even guiding
Metabo Marathon-motor with patented dust protection for long service life
Thumbwheel controlled Vario-Constamatic (VC)-Full wave electronics ideal for working on materials requiring customised speeds, and at speeds which remain almost constant under load
Electronic safety shutdown of the motor for safe working in case the tool stops unexpectedly
Electronic overload protection, soft start and restart protection
Slim design for ideal handling

Includes

Technical Data / Characteristics

No-load speed	4500 - 11500 rpm
Rated input power	900 W
Output power	470 W
Type of edges	Chamfer and radius
Max. chamfer width 45°	6 mm / 1/4 "
Max. chamfer height at 45°	4 mm / 5/32 "

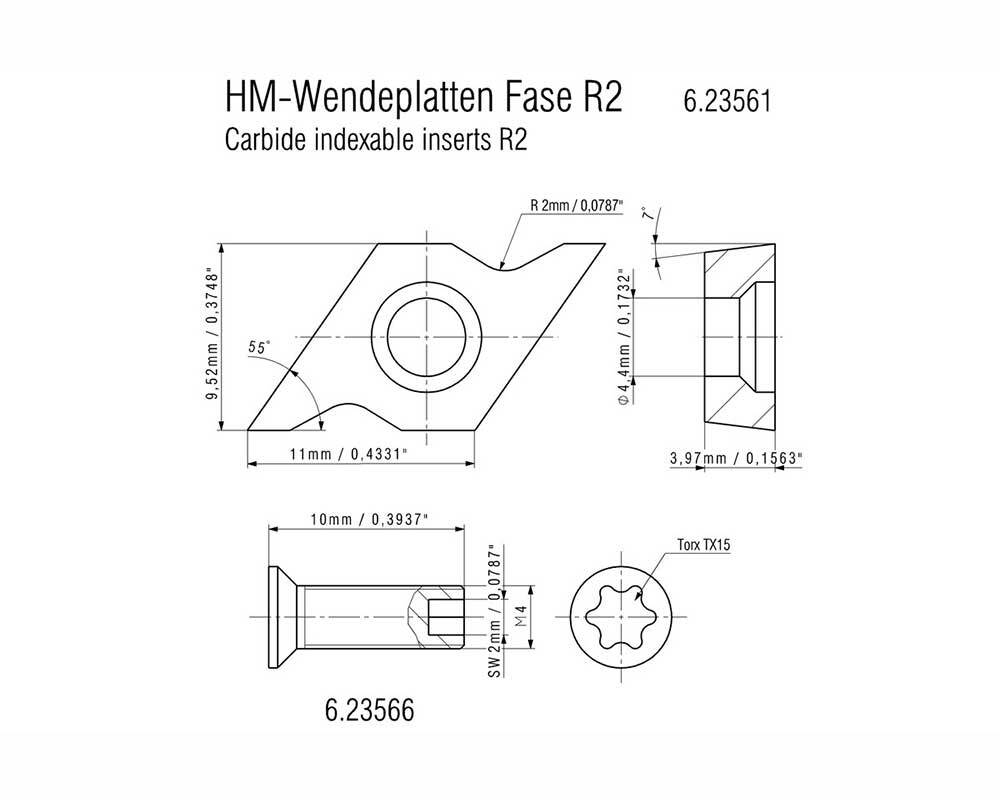

Possible radii	R2 / R3
Grading of cutting depth setting	0.1 mm / 0.00394 "
Curves smallest internal Ø	13 mm
Weight (without power cable)	2.5 kg / 5.5 lbs
Cable length	4 m / 13 ft
