Description

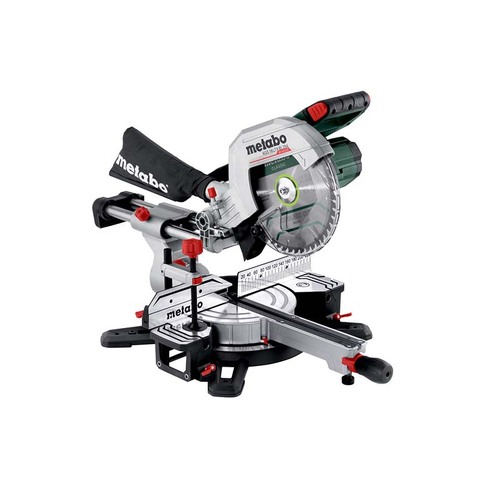

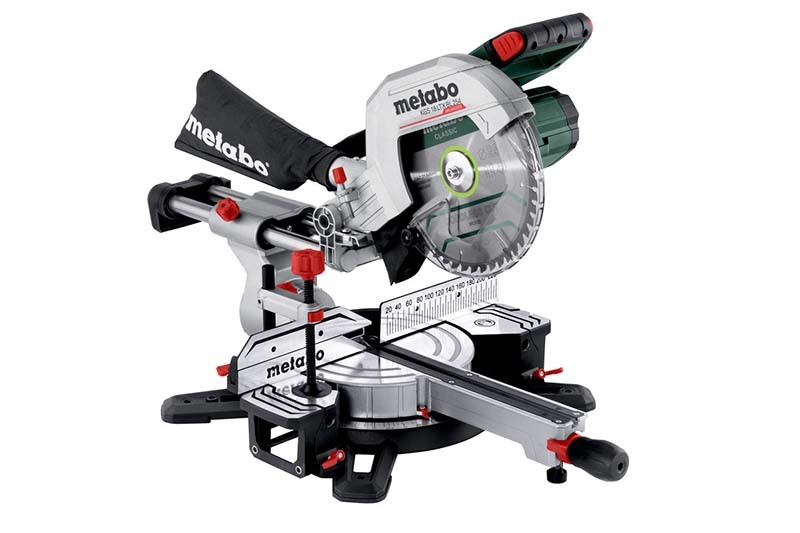

Metabo KGS 18 LTX BL 254 Cordless Mitre Saw - 614254850

Compact cordless crosscut and mitre saw of the mobile M-class - light, precise, user-friendly.
Powerful Brushless motor for powerful sawing like with a mains-powered tool.
Up to 205 cuts in soft wood 80 x 80 mm per battery pack charge (LiHD 10 Ah).
Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED.
Large cutting capacity thanks to sliding function for wide work pieces.
Turntable with fast, precise setting of common angles using stop points.
Saw blade inclination from -2 to 47°, therefore also suited for undercuts.
Robust die-cast aluminium design for the highest demands.
Effective dust extraction via integrated dust scoop.
Soft start and overload protection for long service life of motor and drive.
Extendable table width extensions, also removable to put underneath extremely long work pieces.

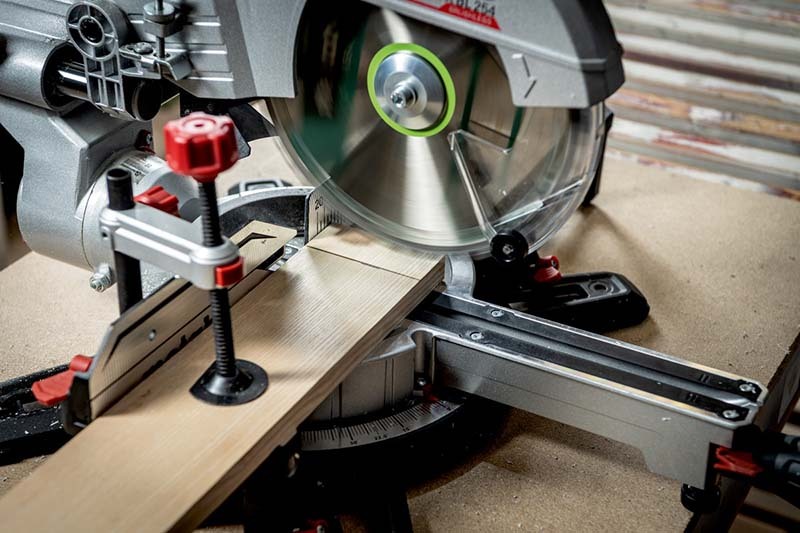

Quick-action clamp for secure fixing of the work piece from the top or front.
Depth guide for easy creation of grooves.
All scales and operating elements are visible from the working position and can be operated intuitively.

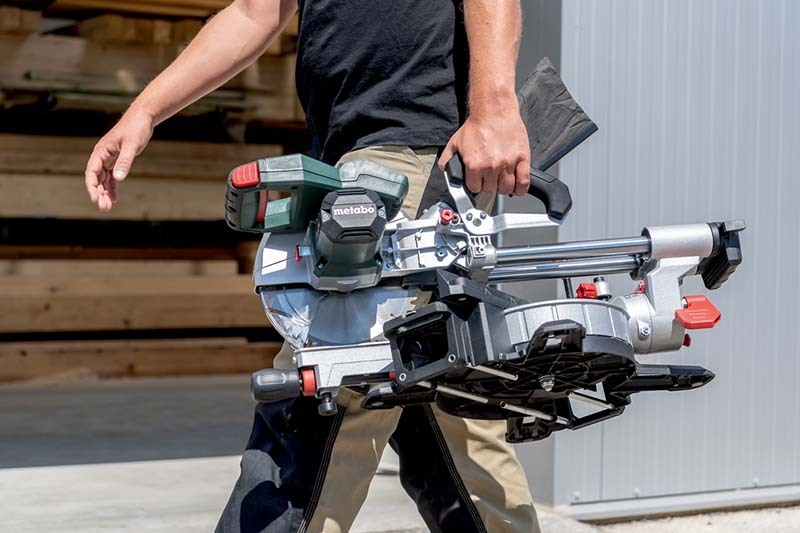

Ergonomic handle areas for carrying with one or two hands.

Note

The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to the content and product description.
Accessories are included only if listed in the contents.

Contents

Technical Data

Characteristic

Battery voltage	18 V
Support surface	345 x 760 mm // 13.58 x 29.9 "
Maximum cutting width 90°/45°	305 / 215 mm // 12 / 8.46 "
Maximum cutting depth at 90°/45°	92 / 47 mm // 3.6 / 1.85 "
Cutting capacity 90°/90°	305 x 92 mm // 12 x 3.54 "
Cutting capacity 45°/45°	215 x 47 mm // 8.66 x 1.85 "
Turntable setting left/right	50 / 50 °
Saw blade tilt left/right	47 / 2 °
Saw blade	254 x 30 mm // 10 x 1.181 "
No-load speed	4000 rpm
Max. cutting speed	53 m/s / 174 ft/s
Weight without battery pack	14.8 kg / 32.6 lbs
