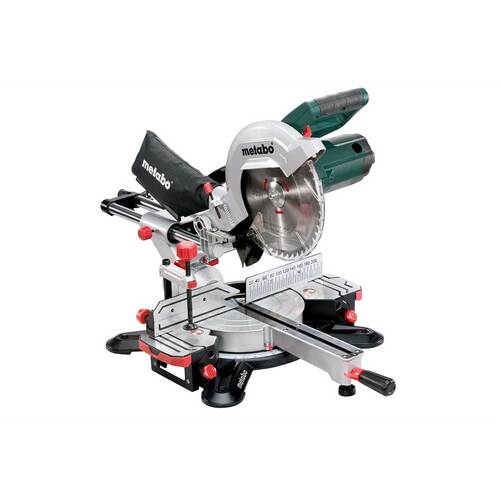

Metabo KGS 254 M Sliding Compound Mitre Saw

Crosscut and mitre saw of the mobile M-class with sliding function - light, precise, user-friendly

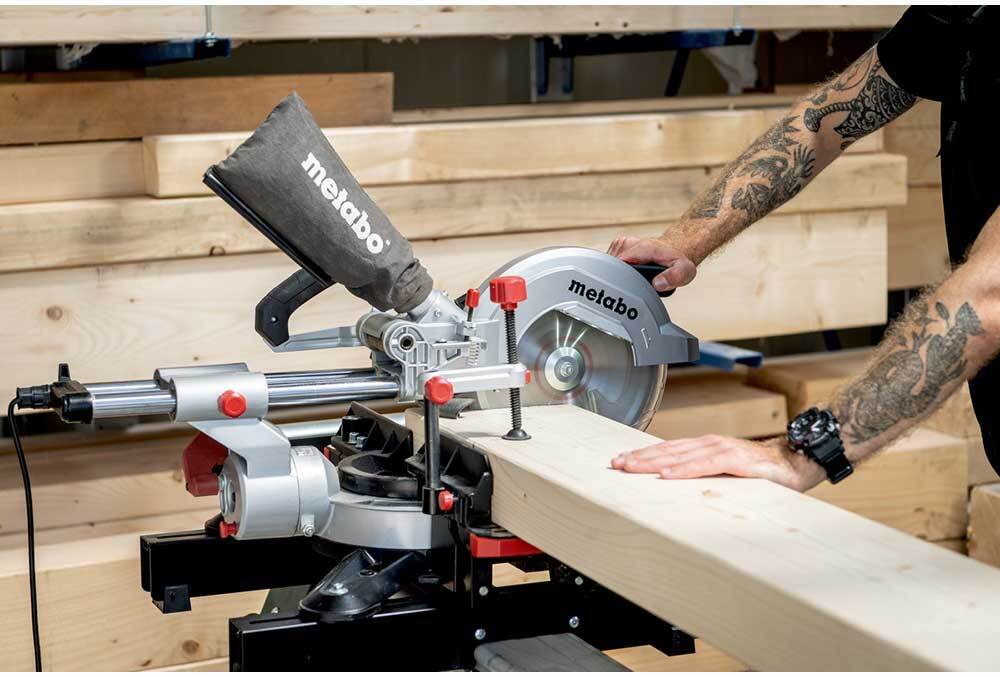

Large cutting capacity thanks to sliding function for wide work pieces
Compact light weight, suitable also for one-handed transport
Robust die-cast aluminium design for the highest demands

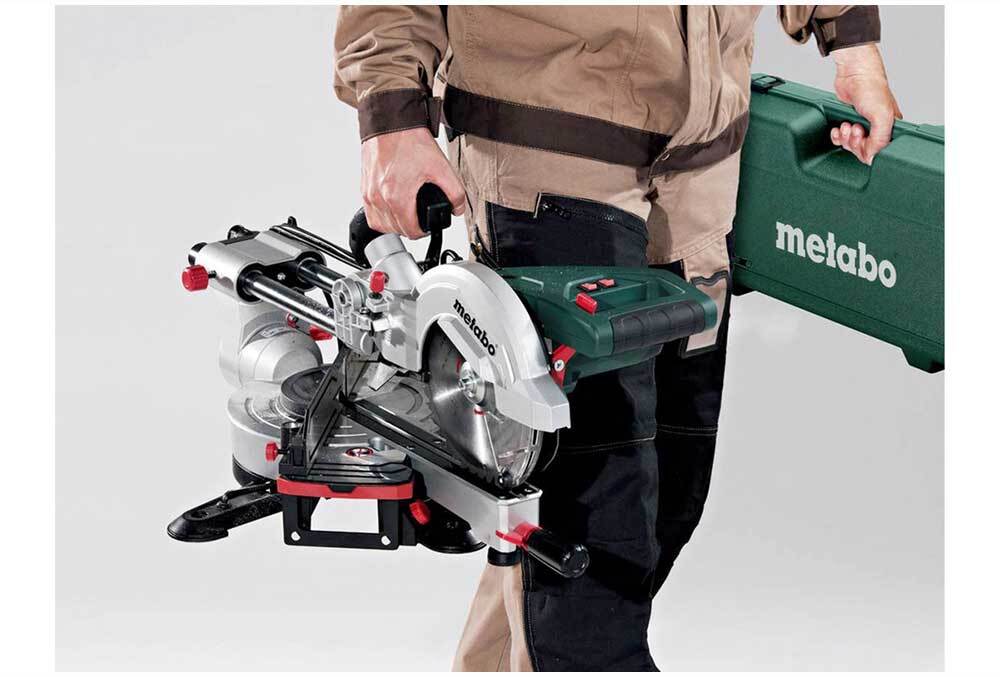

Easy transport thanks to ergonomically-designed handles and saw head lock
Effective dust extraction via integrated dust scoop
Fast and precise setting of common angles using stop points
Laser for exact display of the cutting line (mains powered, no batteries required)

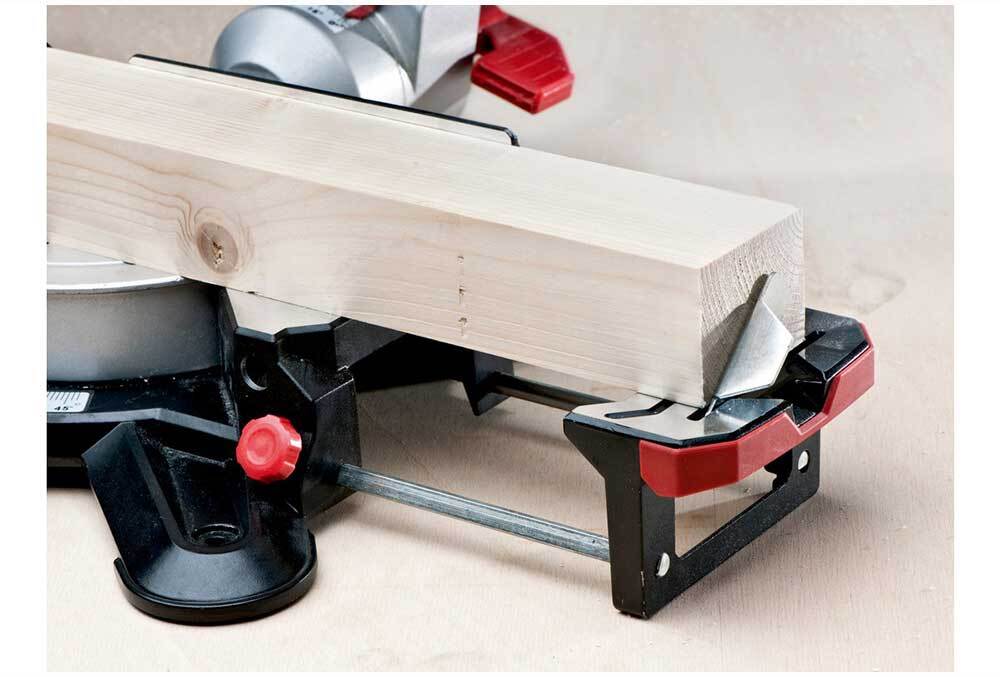

Extendable table width extensions, also removable to put underneath extremely long work pieces
Bright LED work light for illumination of the cutting line (mains powered, no batteries required)

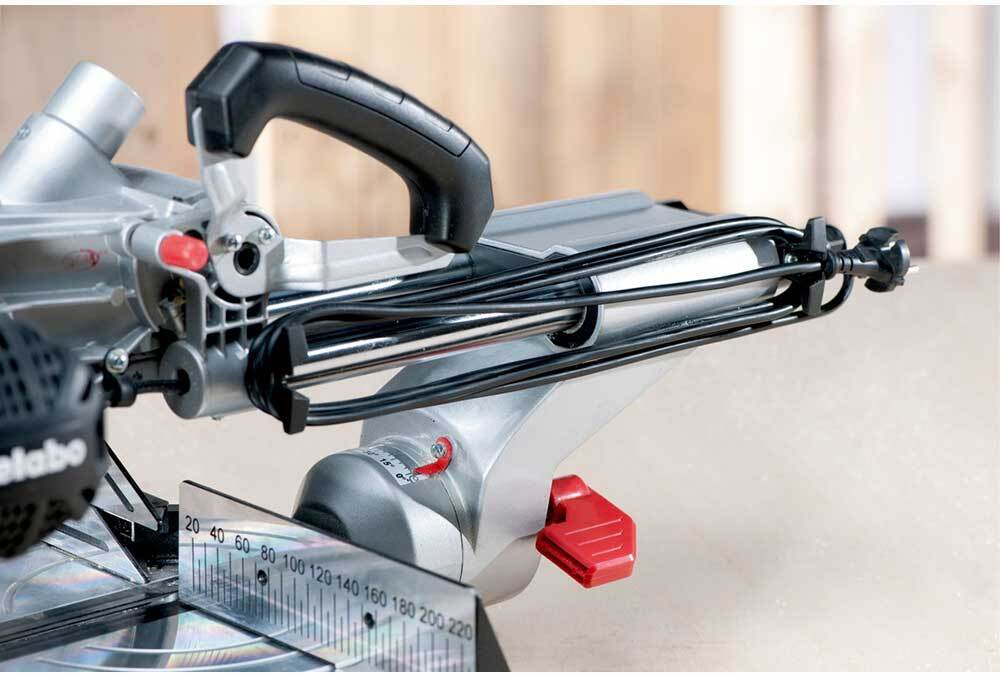

Sliding high rear fence profiles for safe sawing

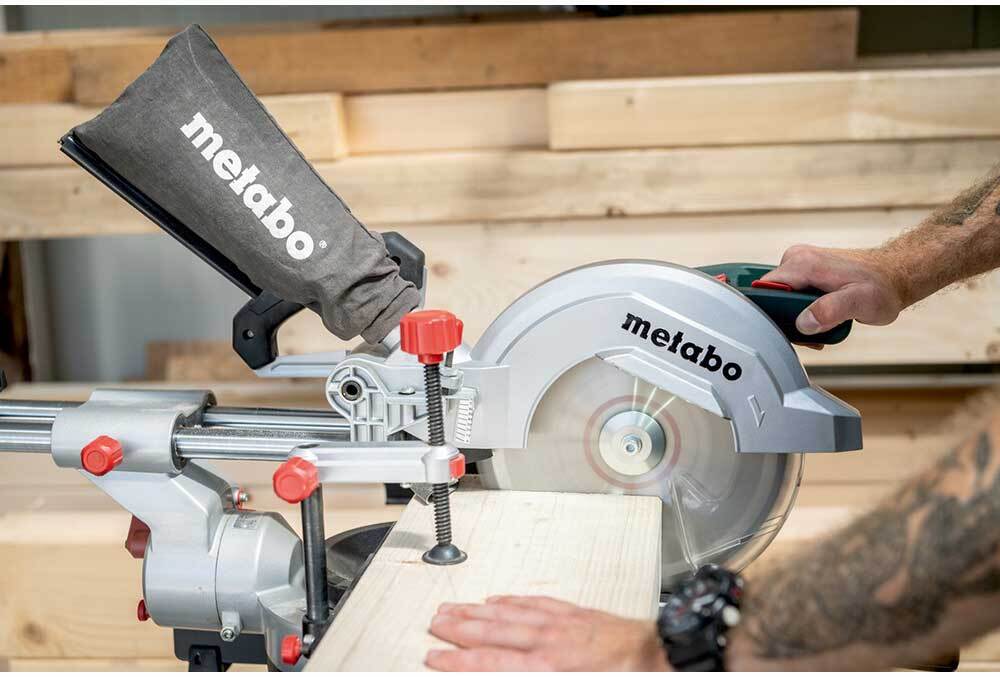

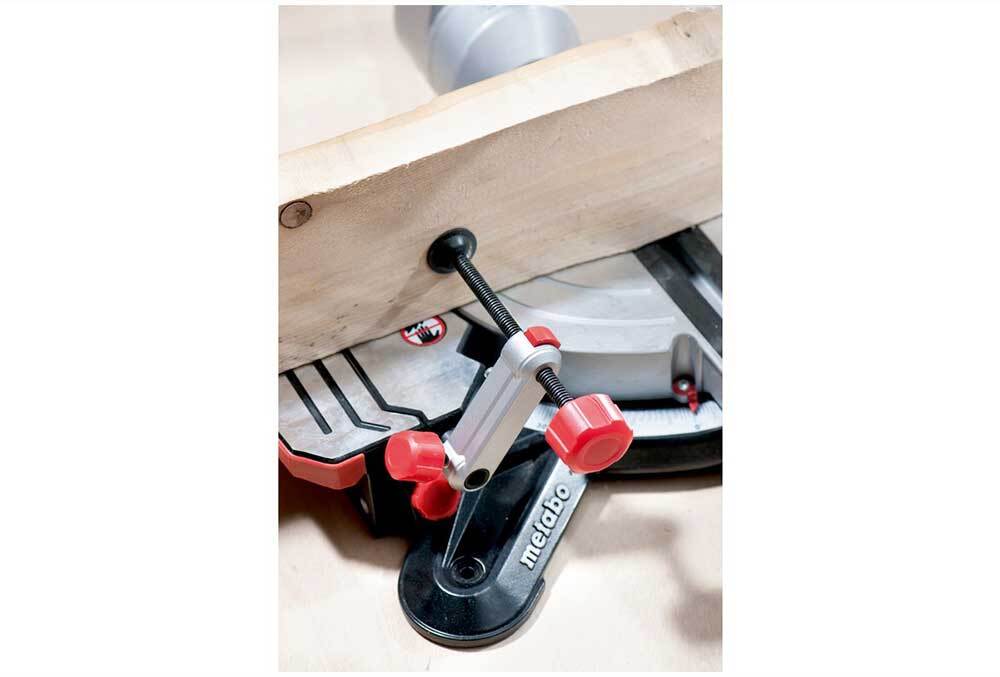

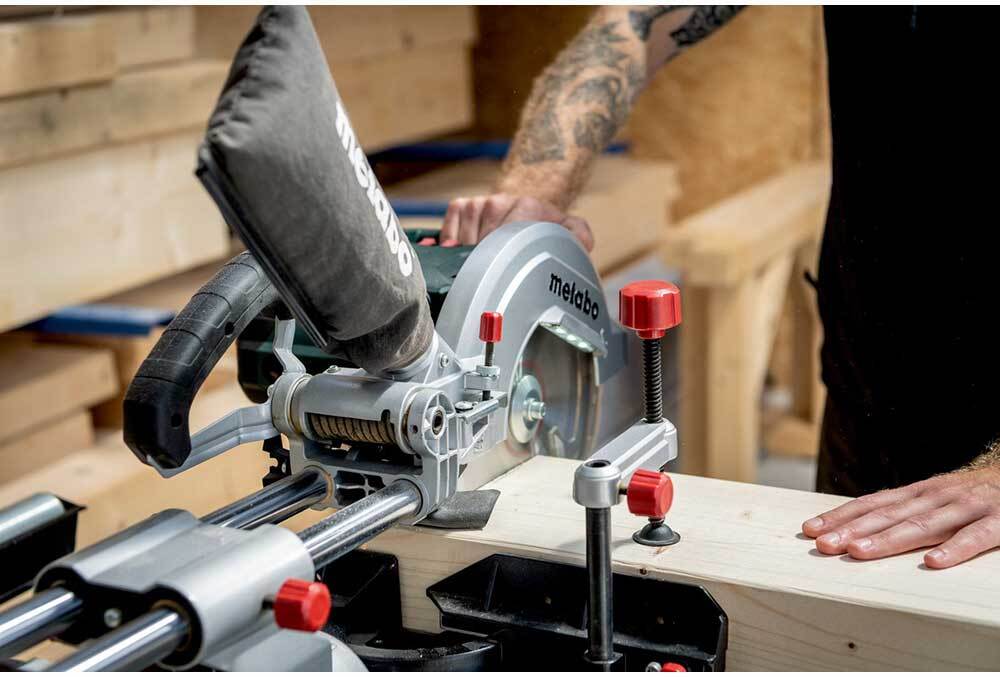

Quick-action clamp for secure fixing of the work piece from the top or front
Depth guide for easy creation of grooves
Saw head can be inclined to the left, with additional angle range for undercuts
All scales and operating elements are visible from the working position and can be operated intuitively
Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required

Includes

Technical Data

Characteristics

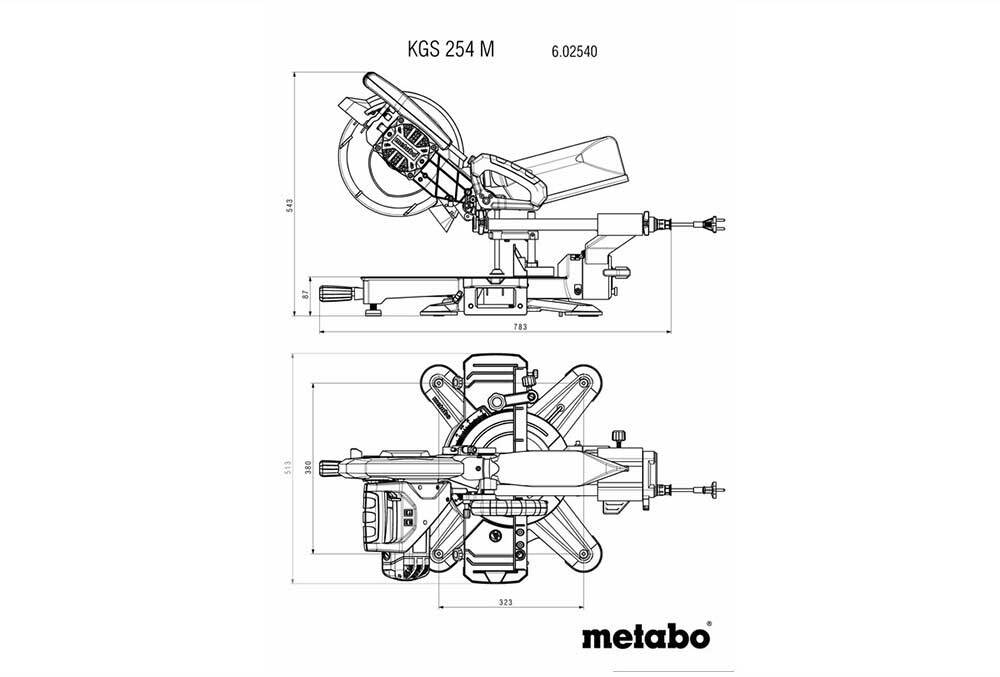

Dimensions	790 x 515 x 515 mm // 2.6 x 1.7 x 1.7 ft
Support surface	340 x 775 mm
Maximum cutting width 90°/45°	305 / 205 mm // 12 / 8 1/16 "
Maximum cutting depth at 90°/45°	92 / 47 mm // 3 5/8 / 1 13/16 "
Cutting capacity 90°/90°	305 x 92 mm // 12 x 3 5/8 "
Cutting capacity 45°/45°	205 x 47 mm // 8 1/16 x 1 27/32 "
Turntable setting left/right	47 / 47 °
Saw blade tilt left/right	47 / 2 °
Saw blade	254 x 30 mm // 10 x 1.181 "
Rated input power S1 100%	1450 W
Rated input power S6 20%	1800 W
No-load speed	4500 rpm
Revolutions at rated load	3150 rpm
Cutting speed	60 m/s // 197 ft/s
Weight	16.3 kg / 36 lbs
Cable length	2 m / 7 ft
