Description

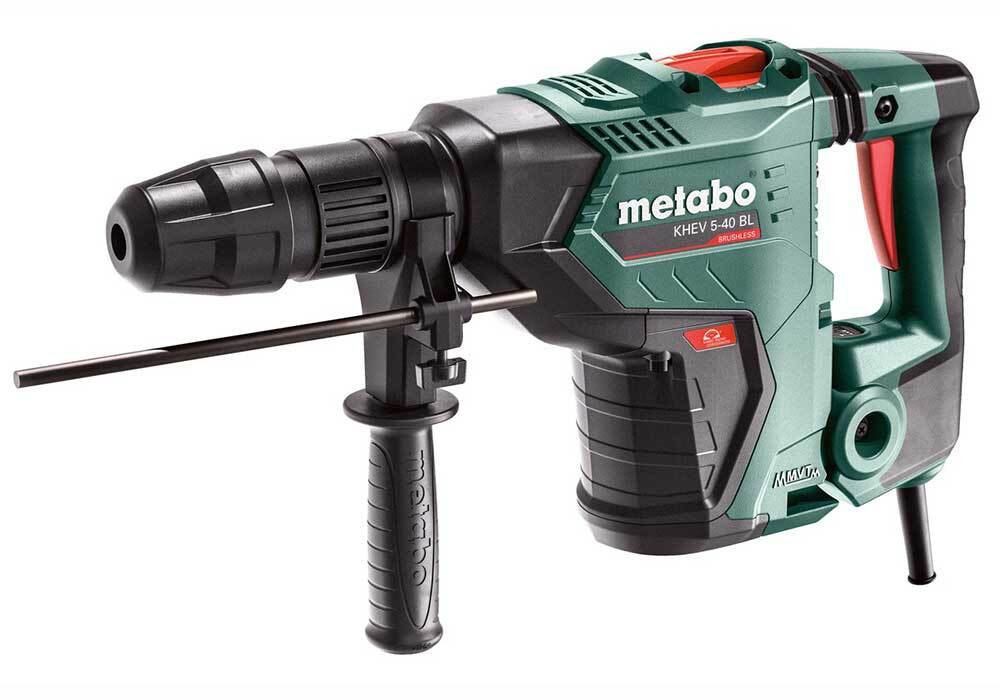

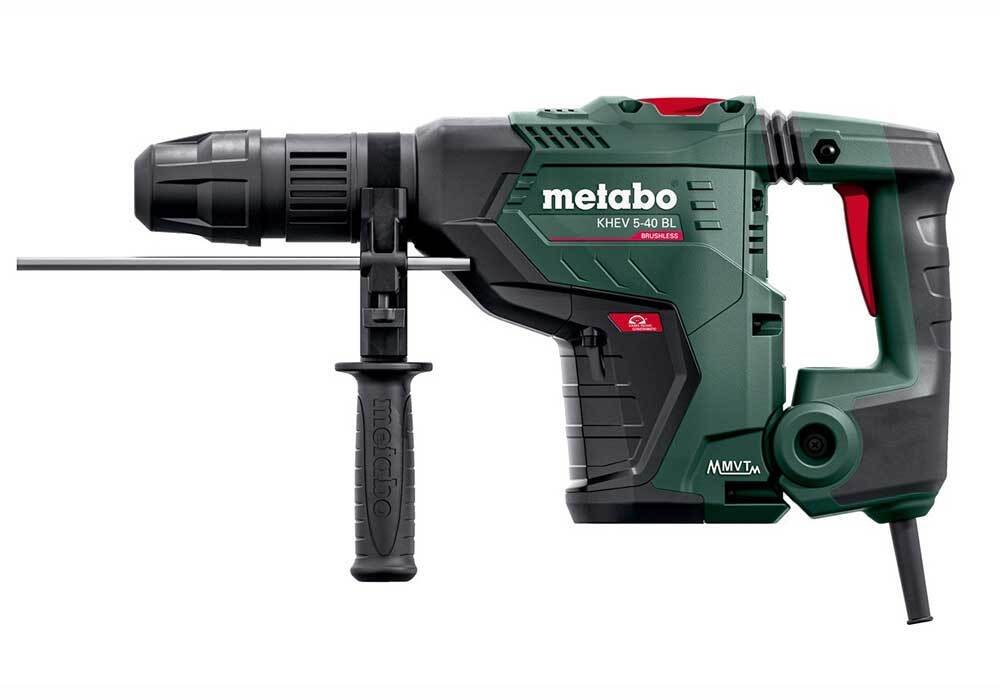

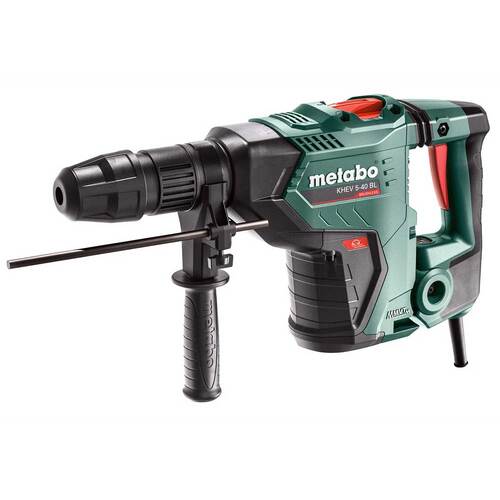

Metabo Combination Hammer KHEV 5-40 BL (600765500)

  • Maximum drilling progress and high breaking performance thanks to maintenance-free brushless motor and high-performance hammer action.
  • Long service life thanks to brushless technology and robust aluminium die-cast housings of gear and motor.
  • Combination hammer with 2 functions: hammer drilling and chiselling.
  • Metabo VibraTech (MVT) with double dampening: Decoupled handle and impact-absorbing counter-oscillating weight actively reduce vibrations for healthy working also in continuous use.
  • Ergonomically shaped, slim gripping area with large speed control trigger for comfortable working.
  • Easily accessible locking switch for chiselling in continuous mode.
  • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load.
  • Optional reduction of speed and impact energy for working in softer materials.
  • Electronic soft start for precise spot-drilling.
  • Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly.
  • Restart protection: prevents unintentional start-up after power supply interruption.
  • Overload protection: protects the motor from overheating.
  • Low-dust chiselling and drilling with external dust extraction ESA max (accessories - sold separately) .

Note

  • The machine shown may differ in equipment and technical details depending on the configuration.
  • Kindly pay attention to the content and product description.
  • Accessories are included only if listed in the contents.

Contents

  • rubber-coated side handle
  • Duster
  • Plastic carry case
  • Drilling depth guide
  • Lubricant for tool shank end

Technical Data

  • Max. single blow energy (EPTA): 8.7J
  • Maximum impact rate: 2900bpm
  • Rated input power: 1150W
  • Drill-Ø concrete with hammer drills: 40 mm / 1 9/16"
  • Bit retainer: SDS-max
Characteristics

Max. single blow energy (EPTA) 8.7 J
Maximum impact rate 2900 bpm
Rated input power 1150 W
Drill-Ø concrete with hammer drills 40 mm / 1 9/16 "
Drill-Ø masonry with core bits 105 mm / 4 1/8 "
No-load speed 350 / 500 rpm
Revolutions at rated load 350 / 500 rpm
Bit retainer SDS-max
Collar diameter 64.6 mm / 2 9/16 "
Weight (without power cable) 8.3 kg / 18.3 lbs
Cable length 6 m / 236 7/32 "
Vibration
Hammer drilling concrete 10.8 m/s²
Uncertainty of measurement K 1.5 m/s²
Chiseling 9.6 m/s²
Uncertainty of measurement K 1.5 m/s²
Noise Emission
Sound pressure level 93 dB(A)
Sound power level (LwA) 104 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0175162
  • Brand Metabo
  • Model Number 600765500
  • Barcode Number 4061792002326
  • Type Rotary Hammer
SKU: A0175162

Metabo KHEV 5-40 BL Brushless SDS Max Rotary Hammer 1150W , 2 Mode

Metabo Combination Hammer KHEV 5-40 BL (600765500)

$1,156.68
