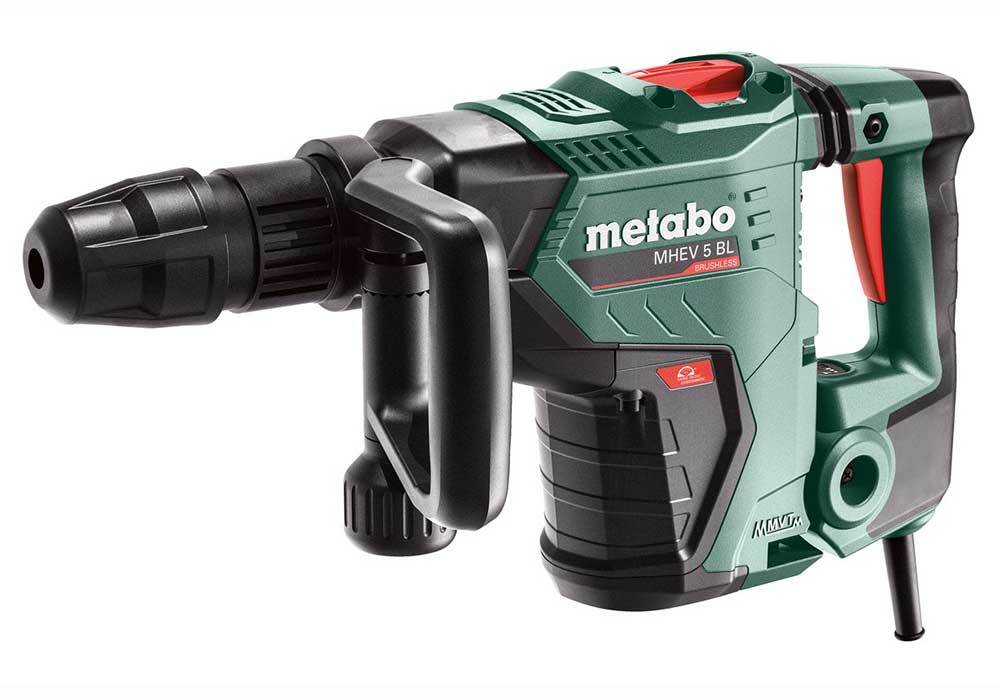

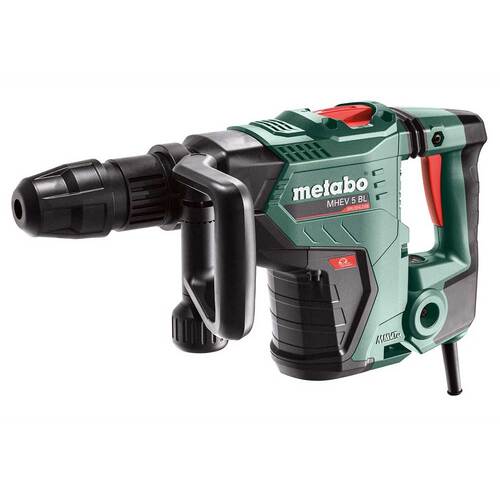

Metabo Chipping Hammer MHEV 5 BL (600769500)

  • High breaking performance thanks to maintenance-free brushless motor and high-performance hammer action.
  • Long service life thanks to brushless technology and robust aluminium die-cast housings of gear and motor.
  • Metabo VibraTech (MVT) with double dampening: Decoupled handle and impact-absorbing counter-oscillating weight actively reduce vibrations for healthy working also in continuous use.
  • Ergonomically shaped, slim gripping area with large speed control trigger for comfortable working.
  • Easily accessible locking switch for chiselling in continuous mode.
  • Optional reduction of the impact energy for working in softer materials.
  • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load.
  • Electronic soft start for smooth start-up.
  • Restart protection: prevents unintentional start-up after power supply interruption.
  • Overload protection: protects the motor from overheating.
  • The adjustable front handle can be rotated 360° and the angle adjusted for an optimum working position.

Note

  • The machine shown may differ in equipment and technical details depending on the configuration.
  • Kindly pay attention to the content and product description.
  • Accessories are included only if listed in the contents.

Contents

  • Side handle
  • Duster
  • Plastic carry case
  • Front handle
  • Lubricant for tool shank end

Technical Data

  • Max. single blow energy (EPTA): 8.7J
  • Maximum impact rate: 2900bpm
  • Rated input power: 1150W
  • Bit retainer: SDS-max
Characteristics
Max. single blow energy (EPTA) 8.7 J
Maximum impact rate 2900 bpm
Rated input power 1150 W
Bit retainer SDS-max
Weight (without power cable) 7.9 kg / 17.4 lbs
Cable length 6 m / 236 7/32 "

Vibration
Chiseling 9.6 m/s²
Uncertainty of measurement K 1.5 m/s²

Noise Emission
Sound pressure level 93 dB(A)
Sound power level (LwA) 104 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0175165
  • Brand Metabo
  • Model Number 600769500
  • Barcode Number 4061792002678
  • Type Demolition Hammer
