Description

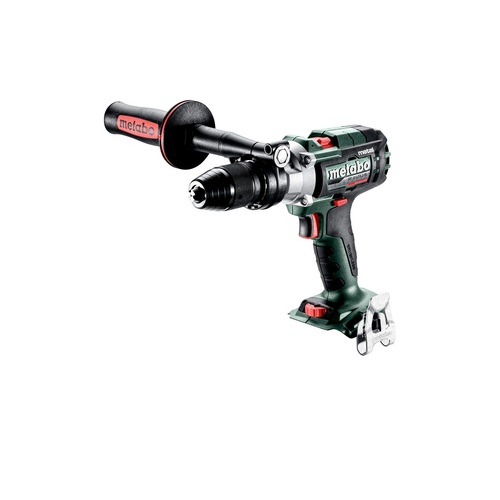

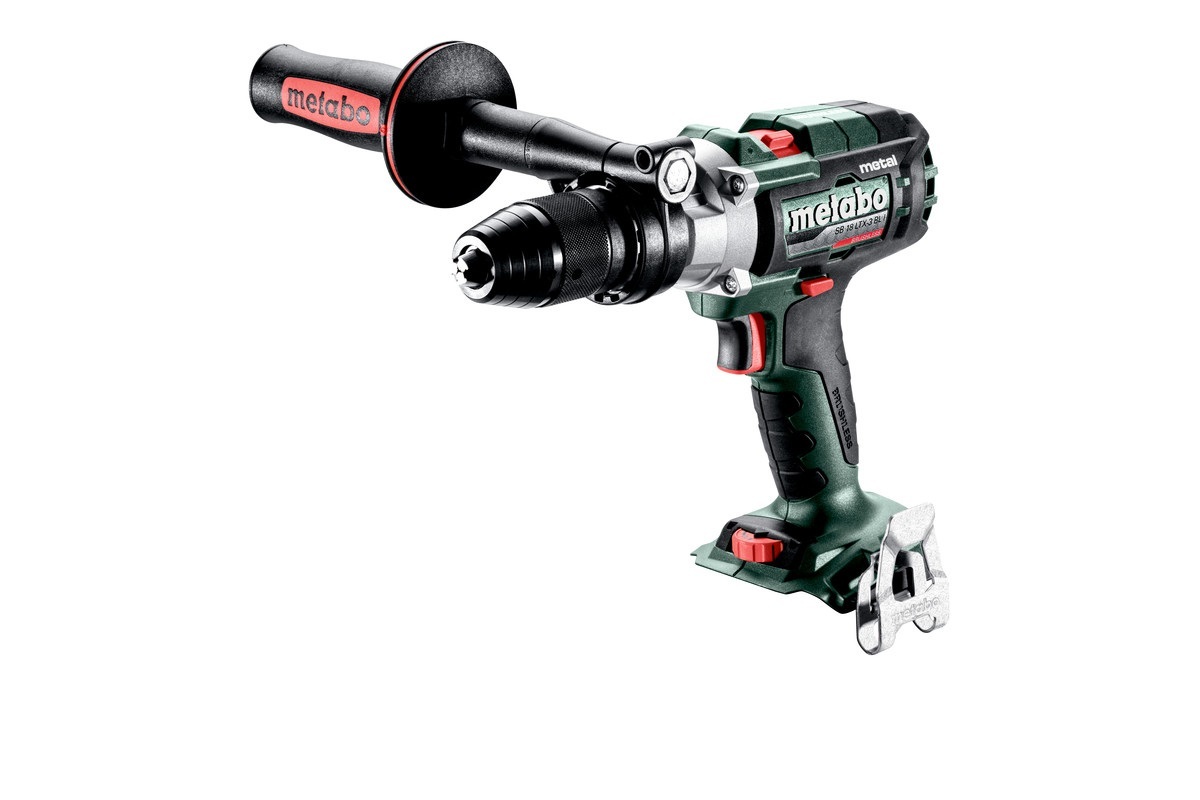

Metabo 18V Brushless Hammer Drill - 603183850

  • Brushless 3-speed cordless hammer drill with maximum power, ideal for demanding metal applications.
  • Extremely powerful chuck with re-tensioning function against slipping of the bit and a high degree of concentricity.
  • Third speed setting with high torque (max. 4,000/min) for extended range of application and even faster drilling progress, especially in metal.
  • Hammer drill function for drilling in masonry.
  • Selectable "impuls" mode for removal of stubborn screws and for spot-drilling on smooth surfaces.
  • Precision Stop: electronic torque control with increased precision for precise, delicate working.
  • Overload protection: protects the motor from overheating.
  • Electronic safety shutdown: no kickback if the drill bit stops unexpectedly - for high user safety.
  • Integrated LED work light with night light function for optimal brightness in the work area.
  • With a handy belt hook and bit case which can be fixed either on the right or left side.
Note
  • The machine shown may differ in equipment and technical details depending on the configuration.
  • Kindly pay attention to the delivery scope and product description.
  • Accessories are included only if listed in the contents.

Technical Data

Characteristic

Battery voltage 18 V
Maximum torque, soft 65 Nm / 575.3 in-lbs
Maximum torque, hard 130 Nm / 1150.6 in-lbs
Adjustable torque 1 - 18 Nm // 8.9 - 159.3 in-lbs
Drill-Ø masonry 16 mm / 5/8 "
Drill Ø steel 16 mm / 5/8 "
Drill-Ø soft wood 68 mm / 2.68 "
No-load speed 0 - 450 / 0 - 2000 / 0 - 4000 rpm
Maximum impact rate 38000 bpm
Chuck capacity 1.5 - 13 mm // 1/16 - 1/2 "
Weight without battery pack 2 kg / 4.4 lbs
Weight with battery pack 3 kg / 6.6 lbs
Vibration
Drilling in metal 3 m/s²
Uncertainty of measurement K 1.5 m/s²
Impact drilling concrete 25 m/s²
Uncertainty of measurement K 1.5 m/s²

Noise Emission

Sound pressure level 98 dB(A)
Sound power level (LwA) 109 dB(A)
Uncertainty of measurement K 3 dB(A)

Contents

  • Futuro Top keyless chuck
  • without battery pack, without charger
  • Side handle
  • C-wrench

Specifications

  • AIMS SKU A0183005
  • Brand Metabo
  • Model Number 603183850
  • Barcode Number 4061792212107
  • Type Hammer Drill
SKU: A0183005

Metabo SB 18 LTX-3 BL I Metal 18V Brushless Hammer Drill W/ Anti-Kick-Back & Re-Tensioning Chuck

Metabo 18V Brushless Hammer Drill - 603183850

$729.91
