Description

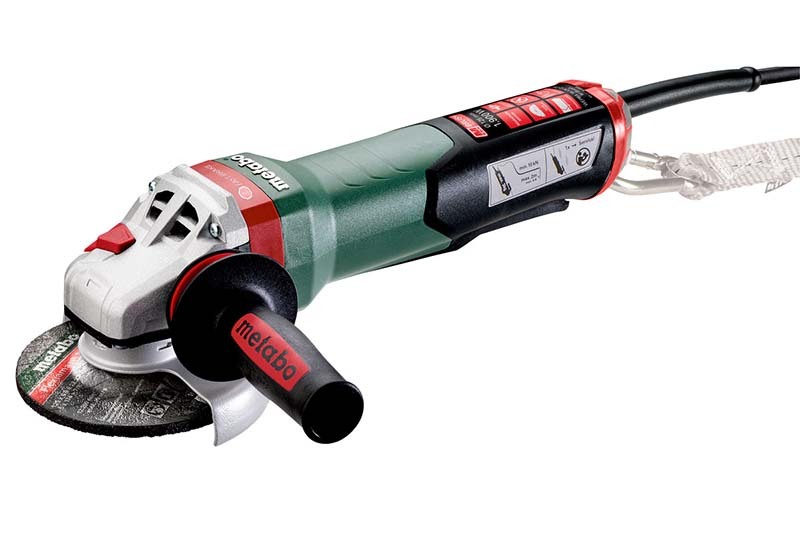

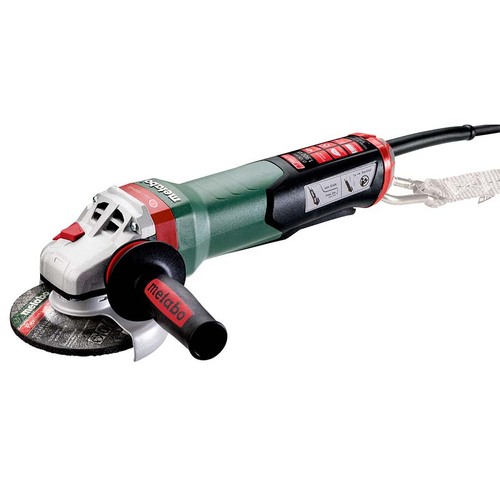

Metabo Angle Grinder - 613114190

  • With powerful 1,900 Watt and M-brush technology equipped for industrial use.
  • Metabo M-brush technology: service-free carbon brushes with triple service life for an entire machine life.
  • Longer service life, more power: the Metabo Marathon-motor with patented dust protection, up to 20% more overload capacity and 50% more torque.
  • Tacho Constamatic (TC) Full-wave Electronics: fast work progress by means of constant speed under load.
  • Tool free, fast disc change at the touch of a button with the Metabo M-Quick-System.
  • Tool-free adjustable guard; twist-proof.
  • Low-vibration side handle Metabo VibraTech (MVT).
  • Best anti-vibration system: integrated auto-balancer for up to 50% less hand-arm vibrations, longer service life of the machine and up to twice the service life of the grinding wheels.
  • Paddle switch with dead man function: safe to operate due to an ergonomically integrated non-slip switch.
  • Fastest brake system for highest user safety: patented, mechanical disc brake stops the disc within 2 seconds after switching off, even in the event of a power cut.
  • Metabo S-automatic mechanical safety clutch: minimises kick-back to the lowest level when the disc jams unexpectedly - for maximum user safety and swift progress.
  • Electronic overload protection, soft start and restart protection.
  • Gear housing can be unscrewed, rotated in 90° steps and remounted for left-handed operation or cutting.
  • Steel ring to accommodate the carabiner secures the angle grinder against falling when working at great heights.

Note

  • The machine shown may differ in equipment and technical details depending on the configuration.
  • Kindly pay attention to the content and product description.
  • Accessories are included only if listed in the contents.

Contents

  • Guard
  • Metabo VibraTech (MVT) side handle

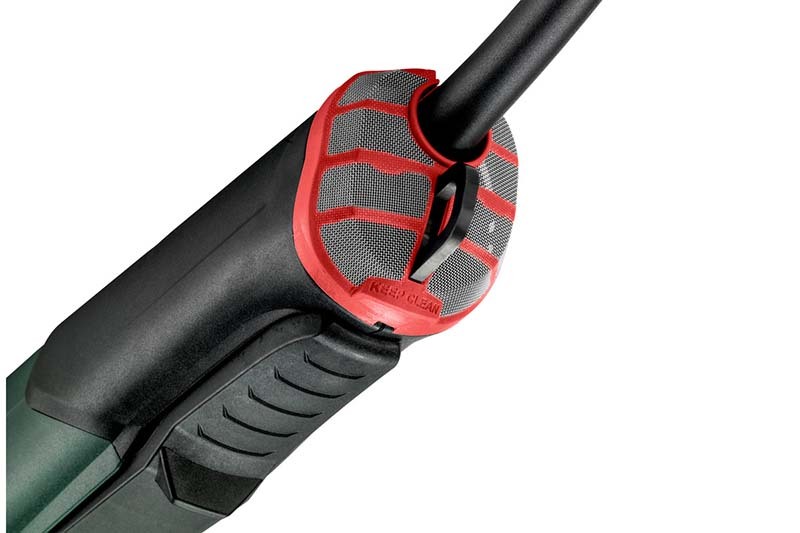

  • Dust protection filter
  • Inner support flange
  • M-Quick flange nut

Characteristics

Disc-Ø 125 mm // 5 "
Rated input power 1900 W
Output power 1220 W
No-load speed 11000 rpm
Speed at rated load 11000 rpm
Torque 4 Nm / 35 in-lbs
Spindle thread M 14
Handle circumference 197 mm / 7 3/4 "
Weight (without power cable) 2.7 kg / 6 lbs
Cable length 4 m / 13 ft

Vibration
Surface grinding 4 m/s²
Uncertainty of measurement K 1.5 m/s²
Grinding with sandpaper 3 m/s²
Uncertainty of measurement K 1.5 m/s²

Noise Emission
Sound pressure level 93 dB(A)
Sound power level (LwA) 104 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0201460
  • Brand Metabo
  • Model Number 613114190
  • Barcode Number 4061792224810
  • Type Angle Grinder
SKU: A0201460 On Sale

Metabo WEPBA 19-125 Q DS M-Brush Angle Grinder - 613114190

Metabo Angle Grinder - 613114190

$489.41
$515.17
