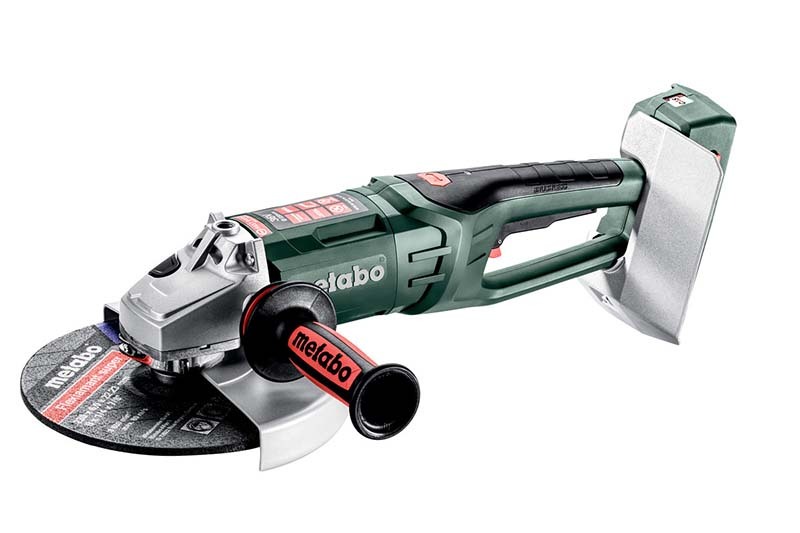

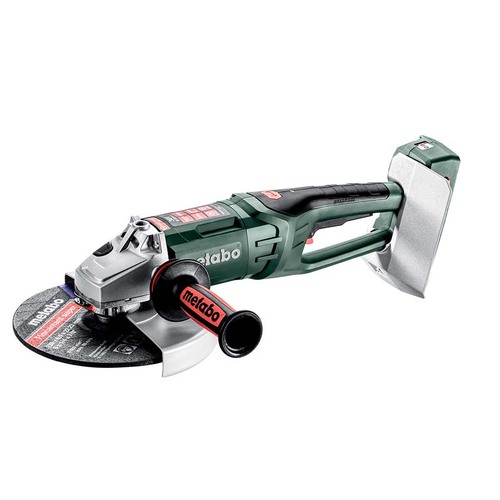

Metabo Cordless Angle Grinder - 613103840

  • Large, powerful cordless angle grinder (Ø 230 mm) for powerful cutting and roughing independent from the mains power.
  • 100% compatibility with the 18 Volt class: powerful 36 Volt operation with two 18 Volt battery packs from Metabo.
  • Widest range of application thanks to extremely large cutting depth of 77 mm.
  • Unique encapsulated Metabo brushless motor with optimum protection from dust provides quick work progress and the highest efficiency.
  • Deadman's switch for high user safety.
  • Fast brake system for highest user safety stops the disc within a matter of seconds after switching off.
  • Metabo Quick for tool-free disc change by means of a quick-locking nut.
  • Tool-free adjustable guard; twist-proof.
  • Rotating main handle: high safety and better handling when cutting.
  • Metabo VibraTech (MVT) side handle for vibration damping to protect the user's health.
  • Side handle can be mounted in three positions.
  • Electronic safety shutdown: reduces kickback if the disc stops unexpectedly - for high user safety.
  • Electronic overload protection, soft start, and restart protection.
  • LiHD battery pack for ultimate performance, extremely long runtime, and service life.
Note
  • The machine shown may differ in equipment and technical details depending on the configuration.
  • Kindly pay attention to the content and product description.
  • Accessories are included only if listed in the contents.

Contents

  • Guard
  • Metabo VibraTech (MVT) side handle
  • Plastic carry case
  • Inner support flange
  • Quick-locking nut

Technical Data

Characteristic

Battery voltage 18 V
Disc-Ø 230 mm / 9 "
Max. cutting depth 79 mm / 3.11 "
No-load speed 6600 rpm
Spindle thread M14
Handle circumference 140 mm / 5.512 "
Weight without battery pack 4.6 kg
Weight with battery pack 6.5 kg

Vibration

Surface grinding 9.8 m/s²
Uncertainty of measurement K 1.5 m/s²
Grinding with sandpaper 3.8 m/s²
Uncertainty of measurement K 1.5 m/s²

Noise Emission

Sound pressure level 94 dB(A)
Sound power level (LwA) 102 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0201447
  • Brand Metabo
  • Model Number 613103840
  • Barcode Number 4061792209701
  • Type Angle Grinder
SKU: A0201447

Metabo WPB 36-18 LTX BL 24-230 Quick Cordless Angle Grinder (Tool Only)

Metabo Cordless Angle Grinder - 613103840

$645.18
