Description

Descriptions

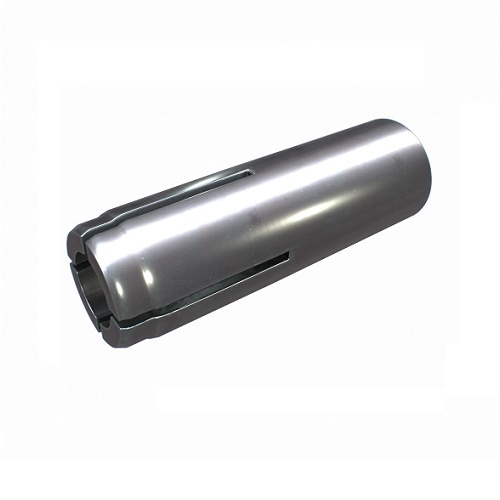

  • Drop-In (Wedge) Anchors are internally threaded expansion anchors that are used in pre-drilled holes.
  • They comprise of a tubular expansion shield and a solid internal cone-shaped plug.
  • Fixing is achieved by inserting a compatible setting tool into the anchor and hitting it several times with a hammer until the shoulder of the tool is flush with the top of the anchor.
  • This allows for the internal plug to be driven down through the shield forcing the four external segments of the shield outward and locking the anchor against the wall of the pre-drilled material.
  • Plain Body

Features

  • Simple installation
  • Flush fitting
  • Shallow embedment depth
  • Permanent fixing
  • Excellent holding power
  • Low costs on supply and installation

Applications

  • Ideally used in applications that requires a medium duty anchor for fixing into solid concrete.
  • Typically used by contractors in the building, plumbing, electrical and air conditioning trades.
  • Commonly used in overhead applications using threaded rod or bolts to secure suspended ceilings, fire sprinklers, light fixtures, ductwork, cable trays & pipe work.
  • Can also be used in solid concrete walls or floors for attaching handrails, shelving, racking, stadium seating or machinery etc.







Specifications

  • AIMS SKU A0096521
  • Fastener Size M6
  • Fastener Length 25 mm
  • Drill Diameter Size (mm) 8
  • Type Drop In Anchor
  • System of Measurement Metric
  • Material 316 Stainless Steel
  • Grade 316
SKU: A0096521

M6 316 Stainless Steel Drop-In Anchor - Box of 100

Drop-in Anchor Stainless Steel

$122.45
