Specifications

AIMS SKU A0134732
Length (mm) 130
Pitch (mm) 1
Size M6
Stress Area (mm²) 20.1
Minimum Tensile Stress (mpa Or N/mm²) 400
Minimum Stress Under Proof Load (mpa Or N/mm²) 225
Minimum Proof Load (kn) 4.52
Minimum Ultimate Tensile Load (kn) 8.04
Core Area (mm) 17.9
Tensile Strength (kn) 17.9
Proof Strength (kn) 8
Shear Strength (kn) 4.5
Recommended Tightening Torque Hdg (nm) 2.5

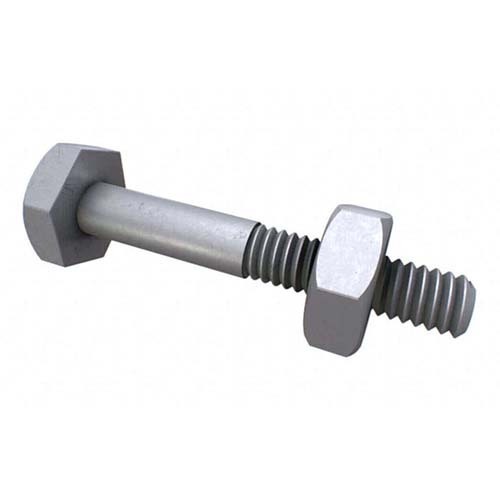

• Type Hex Bolt and Nut
• System of Measurement Metric
• Material Low Tensile Steel
• Finish Hot Dip Galvanised
• Class 4.6
