Specifications

AIMS SKU A0135052
Length (mm) 60
Pitch (mm) 1
Size M6
Stress Area (mm²) 1
Minimum Tensile Stress (mpa Or N/mm²) 800
Minimum Stress Under Proof Load (mpa Or N/mm²) 580
Minimum Proof Load (kn) 11.66
Minimum Ultimate Tensile Load (kn) 16.08
Thread Length (mm) 18

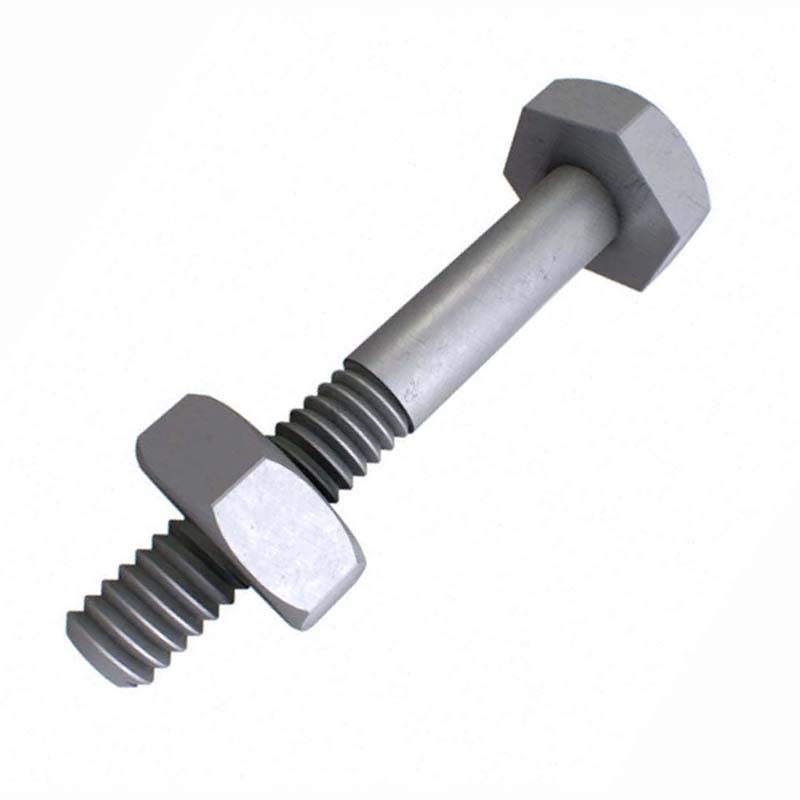

• Type Hex Bolt and Nut
• System of Measurement Metric
• Material High Tensile Steel
• Finish Plain / Black
• Class 8.8
