Description

Chemical Anchor
  • Chemical Anchor Studs are single unit non expansion type fasteners that are used in pre-drilled holes.
  • They comprise of a chisel point stud available in flat cut or external hexagon type head, a nut and washer.
  • Fixing of the stud is achieved by inserting a suitable curing resin into the hole using a glass chemical capsule or injection type adhesive system.
  • The stud is then inserted into the hole and rotated either by hammer drill for (glass capsule) or hand for (injection type) to allow for proper setting into the resin.
  • Anchor can be loaded once appropriate curing time has been reached.

 Features

  • Good load capability
  • Non expanding type fastener
  • Resistant to vibration
  • Complete sealing of hole
  • Can be installed close to edge
  • Reduced spacing between anchors
  • Excellent holding power in weak base materials

Applications
  • Ideally used in applications that requires a light, medium or heavy-duty anchor for fixing into concrete, brick or block base materials.
  • Typically used by contractors in the construction, building and engineering trades.
  • Commonly used in applications which require a non expansion type fastener.
  • Can be used in a range of applications such as internal and external residential fixings, holding down fixtures such as machinery, pumps, motors, fabrication and suspension work, railing, stairs, balconies, etc .


Specifications

  • AIMS SKU A0096471
  • Fastener Size M10
  • Fastener Length 130 mm
  • Type Stud Chemical Anchor Kit
  • System of Measurement Metric
  • Finish Hot-Dip Galvanised
  • Grade G5.8
SKU: A0096471

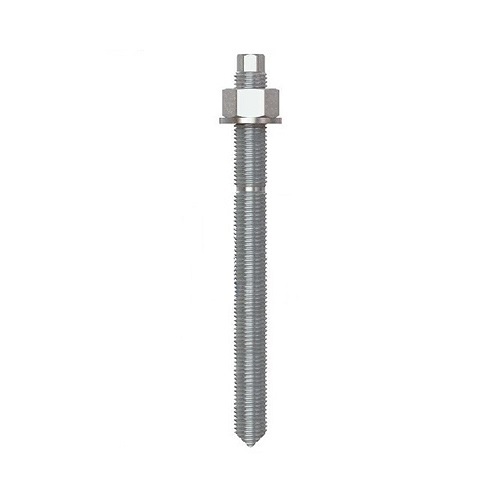

M10 x 130 Galvanised Chemical Anchor Stud Bolt - Box of 10

Chemical Anchor Stud Bolt
