Specifications
- AIMS SKU A0122025
- Brand Seco
- Model Number 74016733
- Barcode Number 16733740001006
- Designation SPMX060204-75,T25M
- Cutting Edge Count (CEDC) 4
- Insert Thickness (S) mm 2.38
- Corner Radius (RE) mm 0.4
- Insert Seat Size Code (SSC) SPMX06..
- Inscribed Circle Diameter (IC) mm 6.35
- Clearance Angle Major (an) Deg 11.0 deg
- Insert Included Angle (epsr) Deg 90.0 deg
- Theoretical Cutting Edge Length (L) mm 6.35
- Type Milling Insert
- Grade T25M
- Grade Type Carbide CVD
- Insert Seat Size Code (SSC) SPMX06
SKU: A0122025

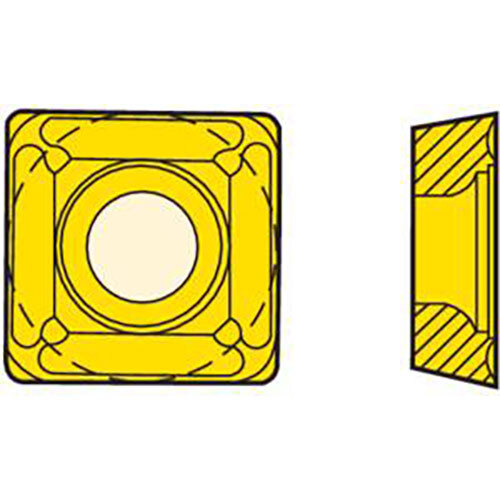

Seco Chamfer Mill Milling Insert SPMX06 6.35 x 2.38 x 0.4mm T25M Grade SPMX060204-75,T25M Pack of 10
Milling Insert SPMX06 T25M Grade
$220.22
