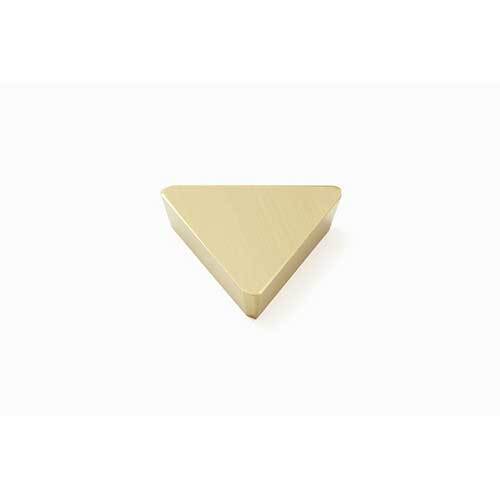

Seco Milling Insert 3.18 x 1.2 x 9.53mm TPKN Size Code Grade T25M TPKN1603PDTR-MD12,T25M - Pack of 10

Milling Insert TPKN Insert Size Code Grade T25M

  • TPKN, Insert Seat Size Code (SSC).
  • 0 deg, Insert Rake Angle (GAN) deg.

T25M Insert Grade

  • Carbide CVD.
  • CVD (Chemical Vapour Deposition).
  • CVD-coated grades are suitable for wear resistance in demanding applications with high feed rates and intermediate to high cutting speed.

Specifications

  • AIMS SKU A0122824
  • Brand Seco
  • Model Number 74016015
  • Barcode Number 16015740001003
  • Designation TPKN1603PDTR-MD12,T25M
  • Weight (kg) 0.005
  • Cutting Edge Count (CEDC) 3

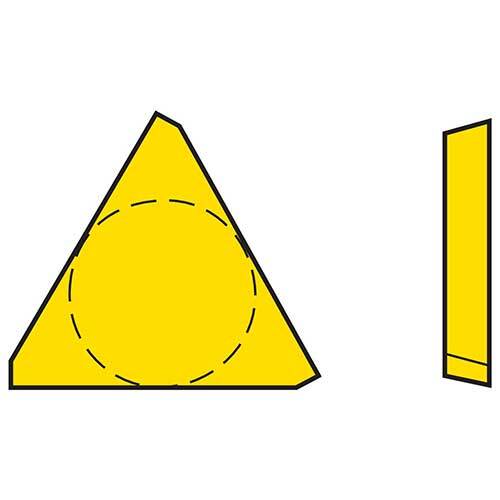

  • Inscribed Circle Diameter (IC) 9.53
  • Insert Hand (IH) Right

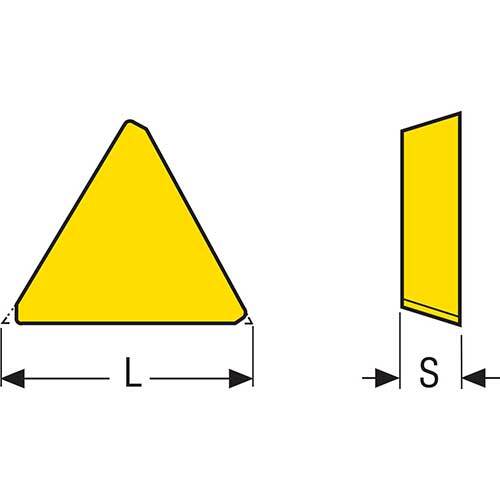

  • Insert Thickness (S) mm 3.18
  • Corner Radius (RE) mm 1.2
  • Insert Seat Size Code (SSC) TPKN16.
  • Clearance Angle Major (an) Deg 11.0 deg
  • Theoretical Cutting Edge Length (L) mm 16
  • Wiper Edge Length (bs) Mm 1
  • Insert Rake Angle (GAN) deg 0.0 deg
  • Type Milling Insert
  • Grade T25M
  • Grade Type Carbide CVD

Video

SKU: A0122824

Seco Milling Insert 3.18 x 1.2 x 9.53mm TPKN Size Code Grade T25M TPKN1603PDTR-MD12,T25M - Pack of 10

Milling Insert TPKN Insert Size Code Grade F40M

$207.82
