Specifications

AIMS SKU A0122106
Brand Seco
Model Number 00082069
Barcode Number 82069000000209
Designation MM06-06006-B90-MD02,T60M
Rake Angle Axial (gamp) Deg 0.0 deg
Zeripheral Effective Cutting Edge Count (ZEFP) 2
Net Weight Kg 0.002
Torque (TQ) Nm 4
Sphere Angle (SA) deg 180.0 deg
Flute Helix Angle (FHA) deg 0.0 deg
Helical Interpolation Hole Diameter Max (cmax) Mm 11.2
Ramping Angle Max (rmpx) Deg 15.0 deg
Grade Type Carbide PVD
Rake Angle Radial (gamf) Deg 0.0 deg
Coolant Supply Property (CSP) 0
Helical Interpolation Hole Diameter Min (cmin) Mm 6.5
Tool Cutting Edge Angle In Feed Direction Side 90.0 deg
Depth Of Cut Max In Feed Direction Side (APMXS) mm 6.1
Corner Radius (RE) mm 3
Cutting Diameter (DC) mm 6
Functional Length (LF) mm 7.06

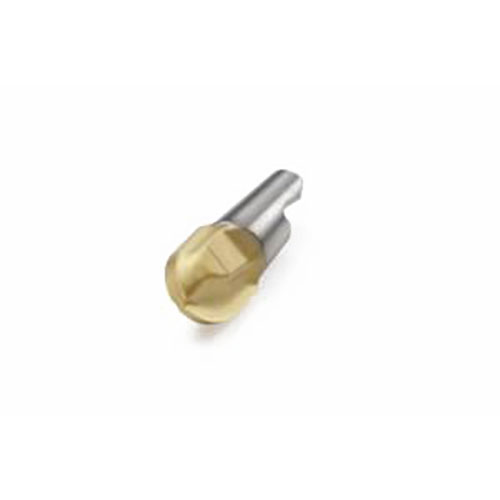

• Type Minimaster™ Ballnose Insert
• Grade T60M
• Insert Taper Size MM06
